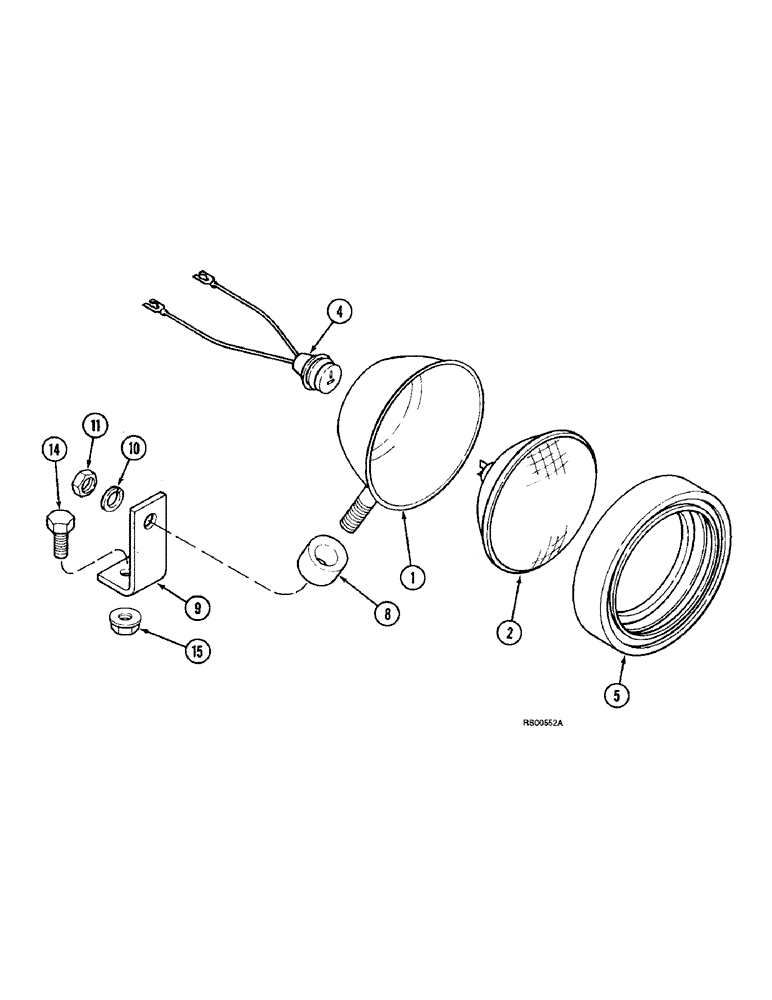

Запчасти Case IH 1680 (4-32) - GRAIN TANK AND UNLOADER LAMP (06) - ELECTRICAL

245954C91

LAMP

ASSEMBLY - grain tank and unloader, replaces 245953C91 lamp assembly, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

2

A47179

BULB

LAMP - grain tank and unloader

1шт.

4

530029R91

CONNECTOR, ELEC

CONNECTOR - lamp

1шт.

5

A25213

RETAINER

- sealed lamp rubber, use with Hobbs lamp

1шт.

5

1252609C1

RETAINER

- shockproof, use with Midwest lamp

1шт.

8

D37048

BUSHING

- pivot

1шт.

9

1317942C1

BRACKET

- grain tank lamp

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

14

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

1шт.

15

231-5146

FLANGE NUT,3/8"-16

1шт.
