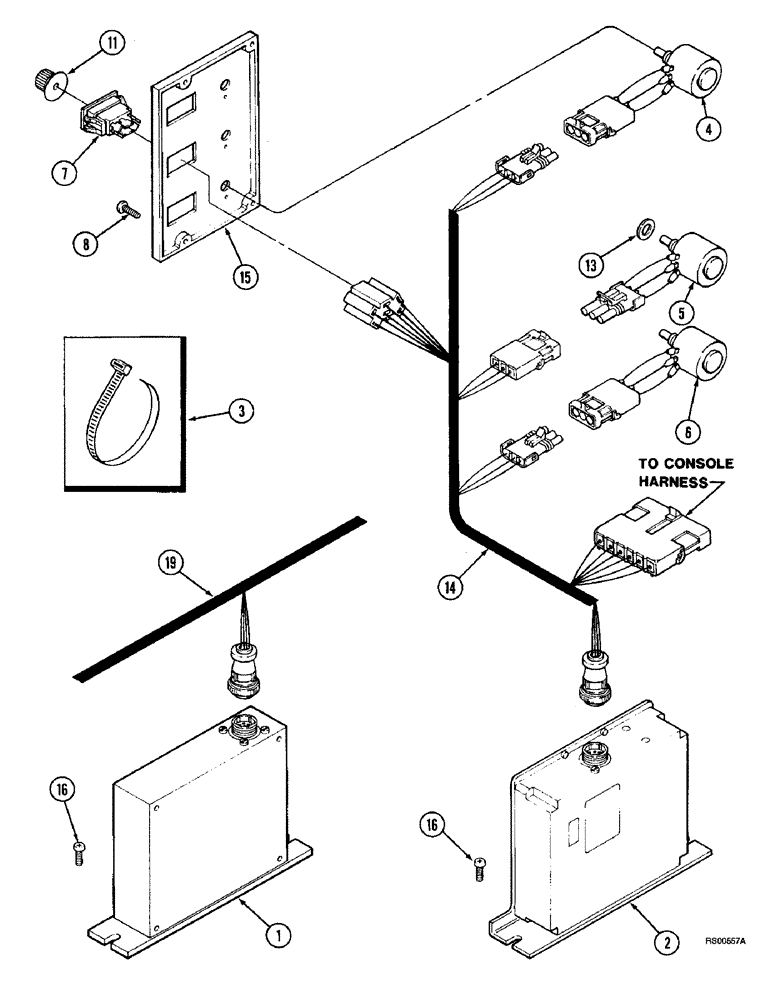

Запчасти Case IH 1680 (4-42) - AUTOMATIC FEEDER CUT-OFF AND AUTOMATIC REEL SPEED, TO GROUND SPEED CONTROL HARNESS (06) - ELECTRICAL

1

1983214C1

CONTROL BLOCK

CONTROL - automatic feeder cutoff, replaces 1310805C1 control

1шт.

2

1983212C1

CONTROL BLOCK

CONTROL - automatic reel speed to ground speed, replaces 245631C1 control

1шт.

3

702093C1

CABLE TIE

STRAP - tie

1шт.

4

245637C1

POTENTIOMETER,2500 Ohm

Reel to Ground Speed Ratio 2500 Ohm

1шт.

5

245925C1

POTENTIOMETER,1000 Ohm

Single, Speed Settingng 1000 Ohm

1шт.

6

245638C1

POTENTIOMETER,200,000 Ohm

Calibration, Single 200,000 Ohm

1шт.

7

245697C1

SWITCH

- rocker, automatic manual

1шт.

8

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

- machine, oval Phillips, No. 6 NC x 5/8 inch

2шт.

11

1345235C1

BUTTON

KNOB - control, reel to ground speed

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

14

245923C1

HARNESS

- reel to ground speed

1шт.

15

REF

INSTRUCTION

PANEL - front control, See Figure 9G-30

1шт.

16

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

4шт.

19

91726C4

HARNESS

- console, right-hand, See Figure 4-06

1шт.
