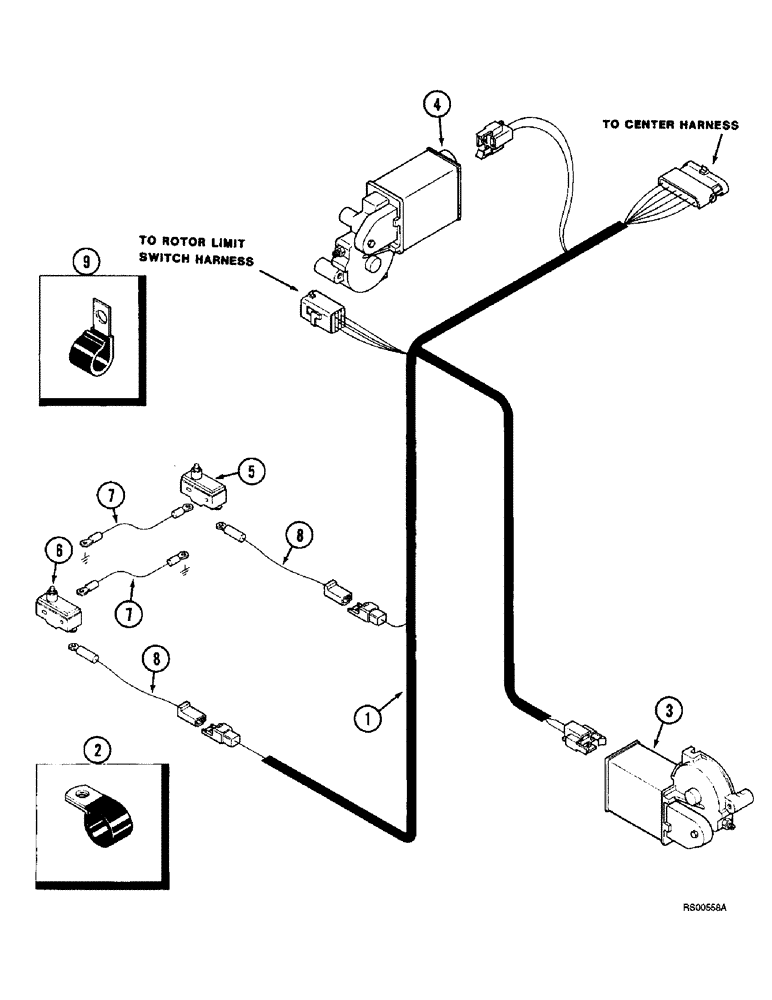

Запчасти Case IH 1680 (4-44) - FAN AND ROTOR SPEED HARNESS (06) - ELECTRICAL

1

245230C1

HARNESS

ASSEMBLY - fan and rotor speed

1шт.

2

84183C1

CLAMP

- P-type, harness

7шт.

3

REF

INSTRUCTION

MOTOR - fan speed, See Figure 9G-37

1шт.

4

REF

INSTRUCTION

MOTOR - rotor speed, See Figure 9B-17

1шт.

5

574649R91

SWITCH

- micro, tailing

1шт.

Use only on machines with the shaft speed monitor system. Used prior to 1987 production.

1шт.

6

574649R91

SWITCH

- micro, shaker

1шт.

Use only on machines with the shaft speed monitor system. Used prior to 1987 production.

1шт.

7

175008C1

CABLE ASSY.

CABLE - micro switch connection

2шт.

Use only on machines with the shaft speed monitor system. Used prior to 1987 production.

1шт.

8

187736C1

CABLE

- separator clutch valve

2шт.

Use only on machines with the shaft speed monitor system. Used prior to 1987 production.

1шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

5шт.
