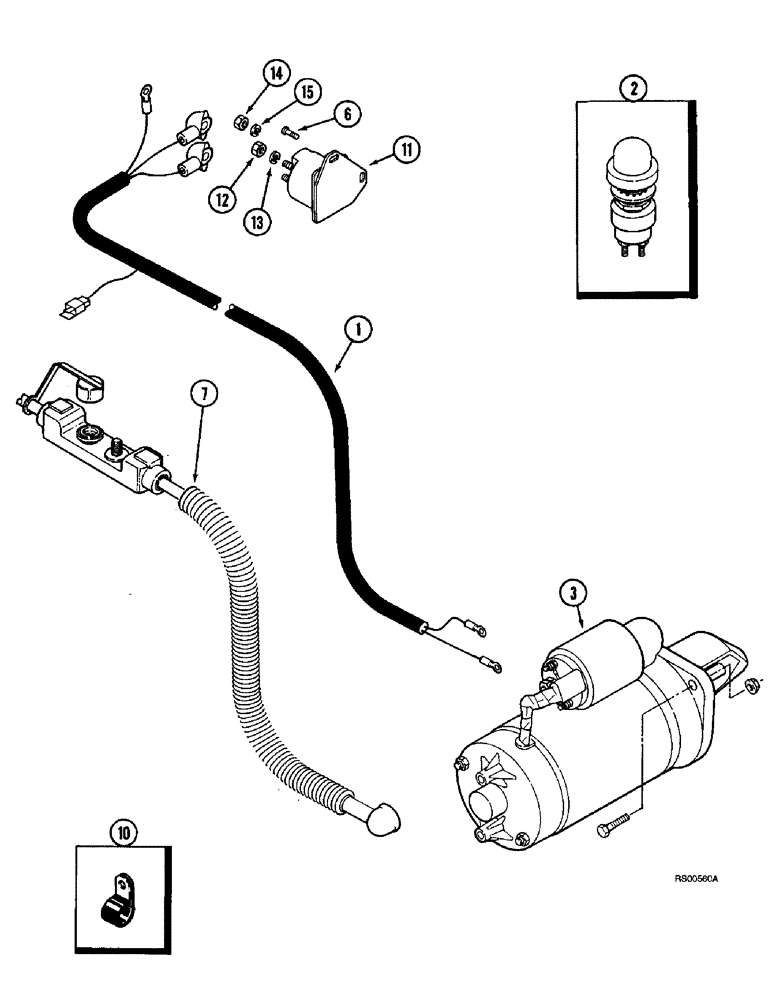

Запчасти Case IH 1680 (4-48) - FEEDER REVERSER HARNESS (06) - ELECTRICAL

1

245957C1

HARNESS

HARNESS - feeder reverser

1шт.

2

453453C1

SWITCH

SWITCH - push button, feeder reverser

1шт.

3

245927C91

STARTING MOTOR

MOTOR ASSEMBLY - feeder reverser, parts list Figure 4-50

1шт.

3

245927C93R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR

1шт.

3

245927C93C

CORE-STARTER

Return Number, STARTING MOTOR

1шт.

6

187-1067

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

2шт.

7

245955C4

CABLE

CABLE - battery positive

1шт.

10

515-23254

CLAMP,1", Insul, 3/8" Bolt

CLAMP, , P-type 1", Insul, 3/8" Bolt

10шт.

11

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover, replaces 121613C1 kit

1шт.

12

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

225-14210

NUT,#10-32

NUT, #10-32

1шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.
