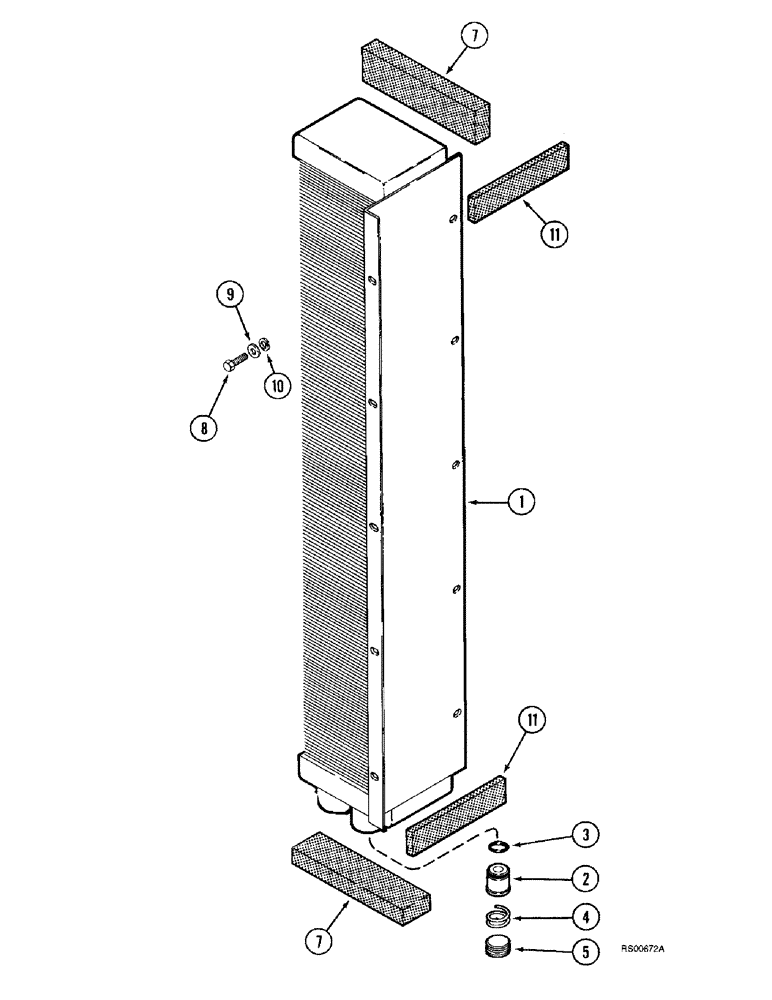

Запчасти Case IH 1680 (8-10) - OIL COOLER (07) - HYDRAULICS

1

1265696C92

COOLER

ASSEMBLY - oil, Includes: Ref. 2 - 5

1шт.

2

146547C1

VALVE

- check

1шт.

3

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

1шт.

4

61222C1

SPRING

- check valve

1шт.

5

444679

PLUG

- pipe

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - foam, 152 mm (6 inch) long, cut from 73222C1 bulk seal, see below

2шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

10шт.

9

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

10шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

11

188062C1

STRIP

SEAL - 140 mm (5-1/2 inch) long, cut from 1338148CX bulk seal, see below

2шт.

73222C1

STRIP

SEAL - foam, bulk, 1219 mm (48 inch) long, sold by the foot

1шт.

1338148CX

SEAL

- bulk, foam, adhesive-backed, 15240 mm (600 inch) long, sold by the foot

1шт.
