(8-46) - DOUBLE PILOTED VALVE, COMBINES WITH 825 HEADER, NOT NORTH AMERICA

Запчасти Case IH 1680 (8-46) - DOUBLE PILOTED VALVE, COMBINES WITH 825 HEADER, NOT NORTH AMERICA (07) - HYDRAULICS

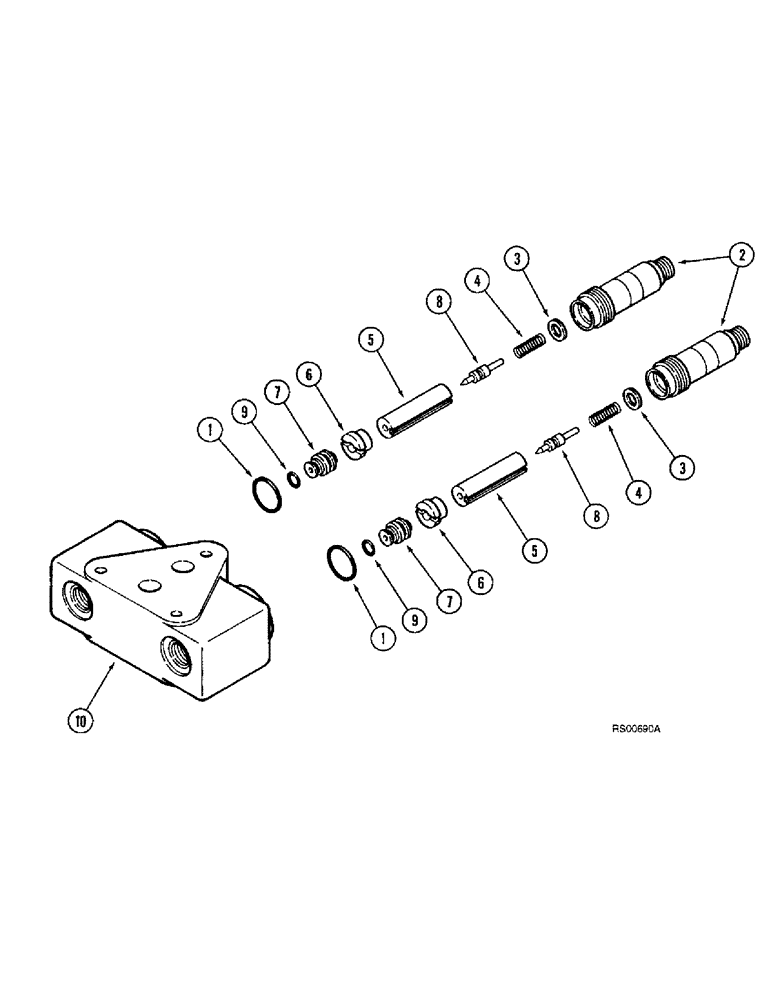

Схема запчастей Case IH 1680 - (8-46) - DOUBLE PILOTED VALVE, COMBINES WITH 825 HEADER, NOT NORTH AMERICA (07) - HYDRAULICS
3
7
6
9
5
8
9
10
7
4
6
2
4
1
3
8
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1301901C91

VALVE

ASSEMBLY - double piloted, Includes: Ref. 1 - 10

1шт.

1

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

2

1301627C3

SLEEVE

- poppet

2шт.

3

1301642C1

WASHER

- spring retaining

2шт.

4

1301640C1

SPRING

- poppet

2шт.

5

1301648C1

ARMATURE

- valve

2шт.

6

1301624C1

BUSHING

- poppet

2шт.

7

1301625C1

ORIFICE

- valve

2шт.

8

1301647C1

POPPET

- valve

2шт.

9

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

10

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.
