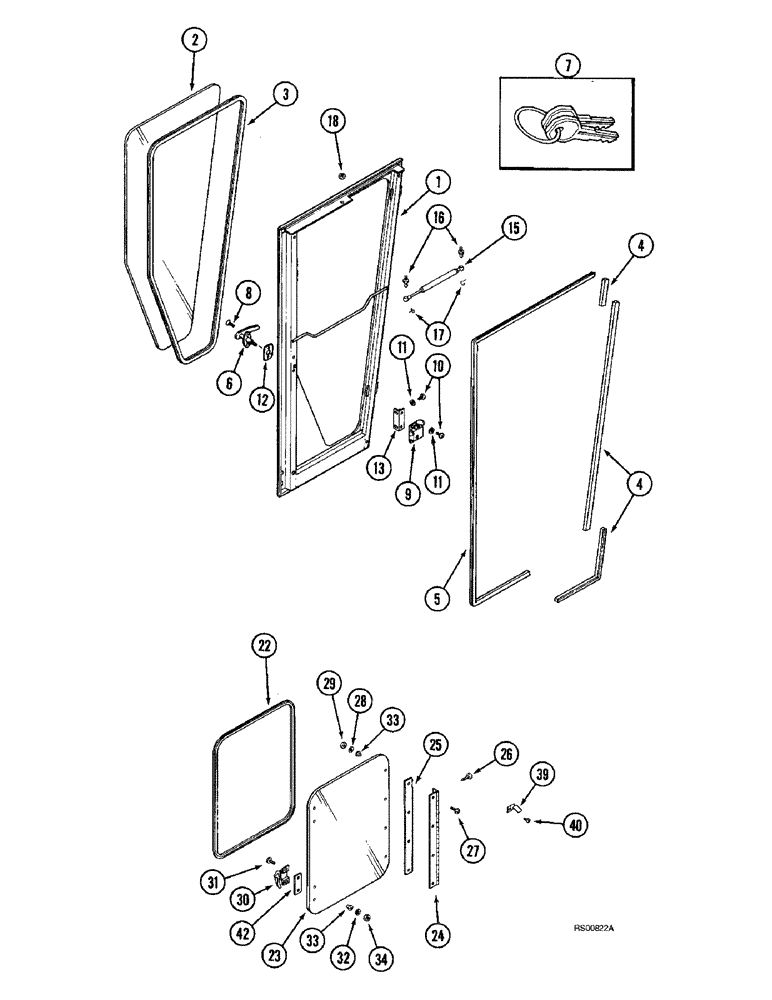

Запчасти Case IH 1680 (9G-26) - CAB, DOOR, REAR WINDOW (10) - CAB & AIR CONDITIONING

1330154C92

CAB

ASSEMBLY - operators, with heater and air conditioner, Includes: Ref. 1 - 29

1шт.

1329477C3

DOOR

ASSEMBLY - cab, replaces 1329480C1 door assembly, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - cab

1шт.

2

198184C1

GLASS

- cab

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - 3315 mm (130-1/2 inch) long, cut from 198131C2 bulk strip, see below, door glass

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - 1321 mm (52 inch) long, cut from 198522C1 bulk strip, see below, door front

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - 229 mm (9 inch) long, cut from 198522C1 bulk strip, see below, door bottom corner

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - 76 mm (3 inch) long, cut from 198522C1 bulk strip, see below, door top corner

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - 2515 mm (99 inch) long, cut from 198522C1 bulk strip, see below, door top and bottom

1шт.

6

1329440C1

HANDLE

- door outside lock, replaces 1329468C1 handle

1шт.

7

1970178C1

SET OF 2 KEYS

KEY - lock, set of 2

1шт.

8

489-11012

SCREW,Cross Oval Hd, #10"-32 x 3/4"

- machine, oval Phillips, No. 10 NF x 3/4 inch

2шт.

9

1329443C1

LATCH

- door

1шт.

10

261-6458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10 NF x 1/2 inch

4шт.

11

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

12

1329441C1

GASKET

- door handle

1шт.

13

1330184C1

BRACKET

ANGLE - support

1шт.

15

1280157C1

GAS STRUT

SPRING - gas, door control

1шт.

16

1340345C1

BALL STUD

STUD - ball

2шт.

17

1304647C1

CLIP

- retaining

2шт.

18

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - 2235 mm (88 inch) long, cut from 1263038C1 bulk seal, see below, rear window

1шт.

23

1283343C1

GLASS

- right-hand rear window

1шт.

24

1301233C1

HINGE

- right-hand rear window

1шт.

25

1301234C1

STRIP

SHIM - hinge, right-hand rear window

1шт.

26

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, rear window

4шт.

27

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan Phillips, No. 10 NC x 5/8 inch, rear window

4шт.

28

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch, rear window

4шт.

29

196922C1

LOCK NUT

- hex, self-locking, No. 10, rear window

8шт.

198131C2

SEAL, GLASS

SEAL - bulk, 3048 mm (120 inch) long, rear window

1шт.

198522C1

STRIP

SEAL - bulk, 15240 mm (600 inch) long, rear window

1шт.

1263038C1

SEAL,7620mm L

- bulk, 7620 mm (300 inch) long, rear window

1шт.

30

170404C1

HANDLE

- right-hand rear window lock, rear window

2шт.

31

440-11028

SCREW,Cross Pan Hd, #10-24 x 1 3/4"

- machine, pan head, No. 10 NC x 1-3/4 inch, rear window

2шт.

31

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch, rear window

4шт.

32

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch, rear window

4шт.

33

896274C1

BUSHING

- window retainer cushion, rear window

8шт.

34

225-14110

NUT,#10-24

Rear window #10-24

2шт.

38

196926C1

END FITTING

GRIP - window lock bolt cap, rear window

2шт.

39

1281761C2

SPRING

- window latch, rear window

1шт.

40

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch, rear window

2шт.

42

183585C1

STRIP

SHIM - right-hand rear window strip, rear window

1шт.
