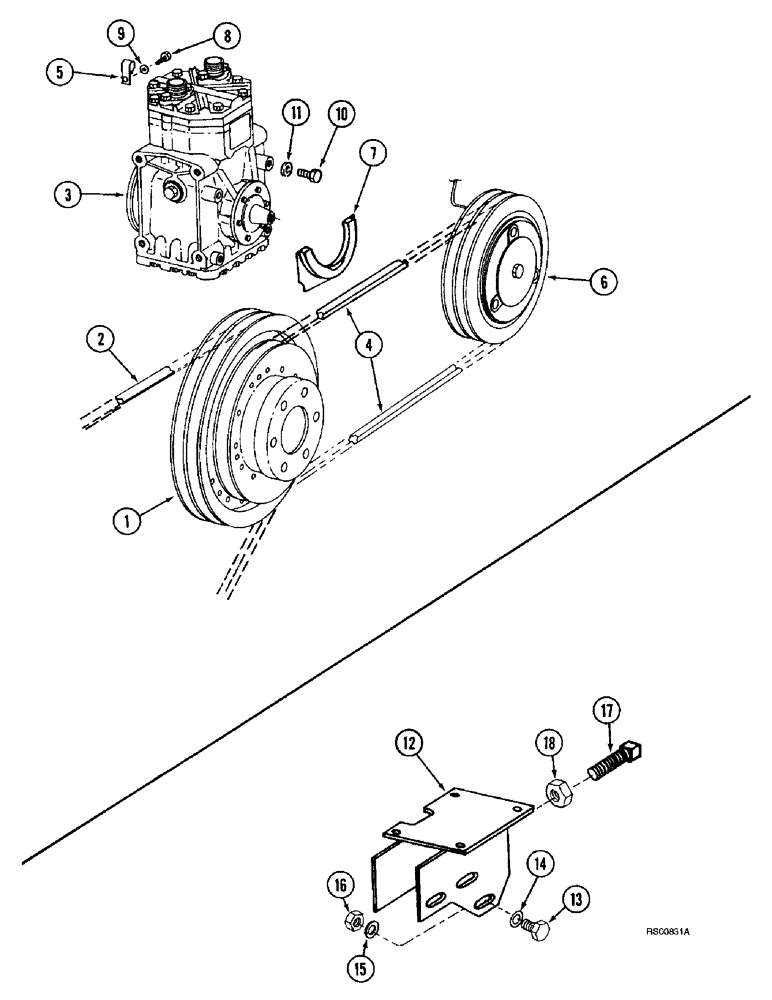

Запчасти Case IH 1680 (9G-44) - HEATING AND AIR CONDITIONING SYSTEM, AIR CONDITIONER COMPRESSOR PULLEY & BELTS (10) - CAB & AIR CONDITIONING

1

691562C1

PULLEY

PULLEY - fan and water pump, three belt grooves

1шт.

2

131201C92

V-BELT,0.60" W x 63.76" L

Drive, Fan Matched Set

1шт.

3

1255750C91

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, parts list Figure 9G-48

1шт.

3

1924008C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor Assy

1шт.

3

1924009C1

CORE-A/C COMPRESSOR

Return Number

1шт.

4

1250587C1

V-BELT,0.50" W

Compressor

1шт.

5

362667R1

CLIP

CLAMP - retainer

1шт.

6

143405C91

PULLEY

CLUTCH ASSEMBLY - compressor, parts list Figure 9G-46

1шт.

7

245983C1

AIR CONDITIONER

WICK - compressor

1шт.

8

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.

9

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT - hex, 3/8 NC x 1-1/4 inch

4шт.

11

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

12

143140C1

BRACKET

SUPPORT - mounting, compressor, air conditioner compressor mounting

1шт.

13

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT - hex, 3/8 NC x 3-1/4 inch, air conditioner compressor mounting

3шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

WASHER - flat, 13/32 x 13/16 x 3/32", hardened, Air conditioner compressor mounting

5шт.

15

492-11038

LOCK WASHER,3/8"

LOCK WASHER, , air conditioner compressor mounting 3/8"

3шт.

16

425-106

NUT,3/8"-16, Cl 5

NUT, , Air conditioner compressor mounting 3/8"-16, G5

3шт.

17

485-13848

SET SCREW,Sq Hd, 3/8"-16 x 3"

SCREW - set, square head, 3/8 NC x 3 inch, cup point, air conditioner compressor mounting

1шт.

18

329-146

JAM NUT,Jam, 3/8"-16, G5

NUT, , Air conditioner compressor mounting Jam, 3/8"-16, G5

1шт.
