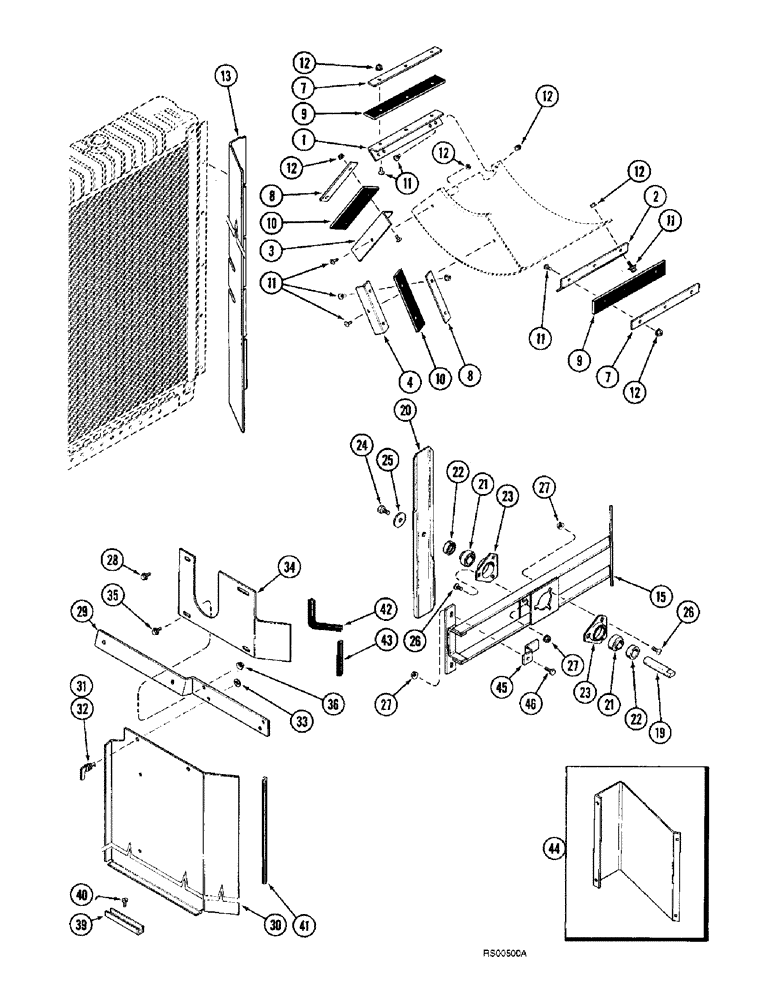

Запчасти Case IH 1680 (2-04) - DUSTY CROP RADIATOR ATTACHMENT (01) - ENGINE

1977223C1

KIT

DEFLECTOR ASSEMBLY - radiator, dusty crop, Includes: Ref. 1 - 46

1шт.

1

1977159C1

SUPPORT

- baffle, left-hand

1шт.

2

1977160C1

SUPPORT

- baffle, right-hand

1шт.

3

1977161C1

SUPPORT

- baffle, left-hand rear

1шт.

4

1977162C1

SUPPORT

- baffle, right-hand rear

1шт.

7

1977163C1

LARGE PLATE

STRIP - 300 mm (11-13/16 inch) long

2шт.

8

1977164C1

SEALING STRIP

- 165 mm (6-1/2 inch) long

2шт.

9

1977165C1

SEAL

- 304 mm (12 inch) long

2шт.

10

1977166C1

SEAL

- 203 mm (8 inch) long

2шт.

11

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

16шт.

12

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

16шт.

13

1977288C1

SHEET

FILLER - deflector

1шт.

15

1977137C1

SUPPORT

- blade, radiator

1шт.

19

1977170C1

SHAFT

- blade

1шт.

20

1977139C1

BLADE

- radiator

1шт.

21

455957R92

BEARING ASSY,19.05mm ID x 47mm OD x 14mm W

- ball

2шт.

22

455958R11

COLLAR,19.05mm ID x 32.94mm OD x 13.49mm W

- lock, bearing

2шт.

23

H333534

FLANGED BEARING

FLANGE - bearing

4шт.

24

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex self-locking, 3/8 NC x 3/4 inch

1шт.

25

495-81145

WASHER,13/32" x 1 3/4" x .120"

- flat, 13/32 x 1-3/4 x 1/8 inch

1шт.

26

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

6шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

28

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

29

1970528C1

BRACKET

- deflector, air

1шт.

30

1970525C1

SHIELD

- deflector

1шт.

31

1316776C1

STUD

- fastener, shield

2шт.

32

1316777C1

LOCKING RING

RETAINER - stud

2шт.

33

1326331C1

NUT

RECEPTACLE - clip on, stud

2шт.

34

1970524C1

SHIELD

- deflector

1шт.

35

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

3шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

39

1970544C1

STOP

- lower, shield

1шт.

40

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slotted, No. 10-16 x 1/2 inch

3шт.

41

NSS

NOT SOLD SEPARAT

TRIM - edge, 305 mm (12 inch) long, cut from 1977224CX bulk trim, see below

1шт.

42

NSS

NOT SOLD SEPARAT

TRIM - edge, 127 mm (5 inch) long, cut from 1977224CX bulk trim, see below

1шт.

43

NSS

NOT SOLD SEPARAT

TRIM - edge, 152 mm (6 inch) long, cut from 1977224CX bulk trim, see below

1шт.

44

1979070C1

SHIELD

- inner air deflector

1шт.

45

1979136C1

BAR

BRACKET - stop

1шт.

46

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex washer head, 5/16 NC x 1 inch

1шт.

1977224CX

GASKET

TRIM - edge, bulk, 15240 mm (600 inch) long

1шт.
