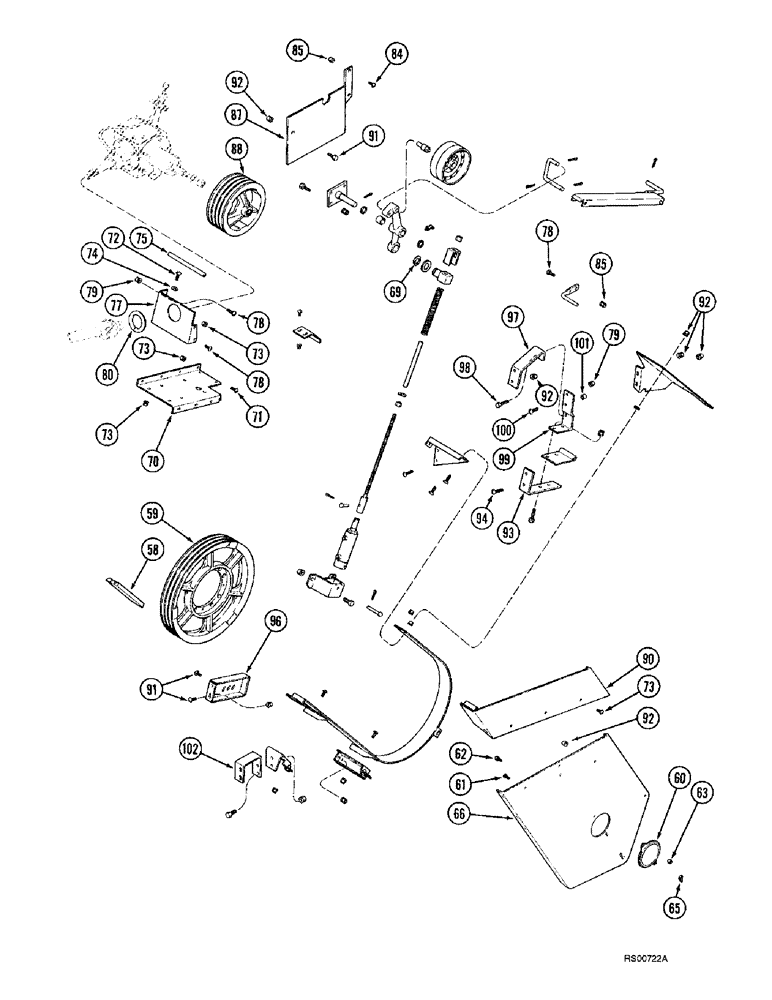

Запчасти Case IH 1680 (9A-22) - FEEDER DRIVE (CONTD) (13) - FEEDER

58

194528C1

BELT,0.879" W x 143.37" L, 3 Ribs

V-BELT , Drive, Over center, Models without rock trap 0.879" W x 143.37" L, 3 Ribs

1шт.

58

1315074C1

V-BELT,22.23 mm W x 4029.32 mm L

Drive, Models with Rock Trap 22.23 mm W x 4029.32 mm L

1шт.

59

1305297C1

PULLEY

- driven, 22-9/16 inch OD, feeder

1шт.

60

188315C1

DOOR

- access, belt drive cover

1шт.

61

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

1шт.

62

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

63

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

65

126177

WING NUT

NUT - wing, 1/4 inch NC

1шт.

66

183025C94

COVER

SHIELD - belt, includes decal

1шт.

68

133405C92

CYLINDER

ASSEMBLY - 51 (2) ID x 63 mm (2-1/2 inch) stroke, feeder clutch, parts list Figure 8-78

1шт.

68

87337239R

REMAN-HYD CYLINDER

1680 CASE IH AXIAL-FLOW COMBINE (PRIOR TO S/N JJC0045689) (NORTH AMERICA), PRIOR TO JJC0045689, Assembly, 51 (2) ID x 63 mm (2-1/2 inch) stroke, feeder clutch (1/86-12/92), Reman for New PN 133405C92

1шт.

68

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

69

100-11150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

70

191329C1

SUPPORT

- gear housing

1шт.

71

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

6шт.

73

231-5146

FLANGE NUT,3/8"-16

6шт.

74

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

4шт.

75

191497C1

SEALING STRIP

SEAL - 270 mm (10-5/8 inch) long

1шт.

77

191399C1

SUPPORT

- gear housing rear

1шт.

78

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

5шт.

78

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- self-locking, truss head Phillips, special, 3/8 NC x 1 inch

2шт.

79

231-5146

FLANGE NUT,3/8"-16

7шт.

80

191496C1

SEALING STRIP

SEAL - 300 mm (11-7/8 inch) long

1шт.

82

191596C91

DRIVE SHAFT

JOINT ASSEMBLY - universal drive, See Figure 9A-08, item 28

1шт.

84

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

85

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

87

186490C1

SUPPORT

- shield, upper

1шт.

88

193999C1

PULLEY

- drive, 12 inch OD

1шт.

90

1315085C1

GUARD

SHIELD - extension, belt, models with rock trap

1шт.

91

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

8шт.

92

231-5146

FLANGE NUT,3/8"-16

12шт.

93

1315078C3

SUPPORT

- extension, models with rock trap

1шт.

94

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

6шт.

96

1315083C1

SUPPORT

- shield lower extension, models with rock trap

1шт.

97

1315231C1

SUPPORT

- stiffener, models with rock trap

1шт.

98

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

99

1315082C1

SUPPORT

- shield, models with rock trap

1шт.

101

314148R1

SPACER,10.7mm ID x 17.14mm OD x 11.9mm L

1шт.

102

1315084C2

SUPPORT

- shield rear extension

1шт.

72

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.

100

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
