(9B-34) - CONCAVES, CONCAVES AND GRATES

Запчасти Case IH 1680 (9B-34) - CONCAVES, CONCAVES AND GRATES (14) - ROTOR, CONCANVES & SIEVE

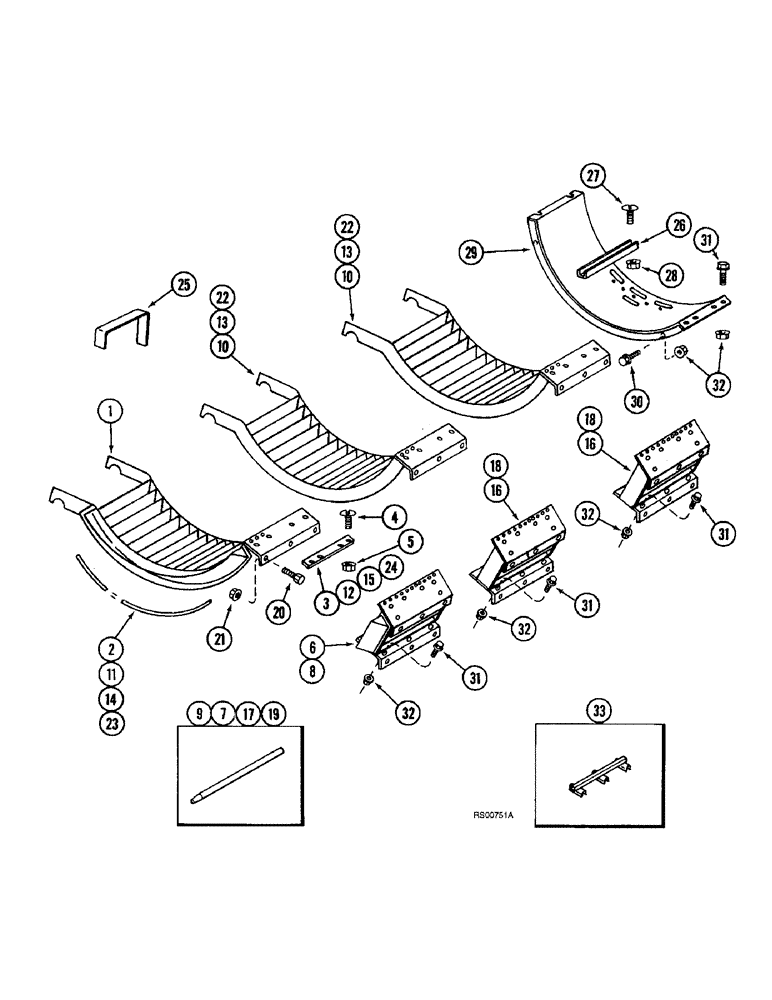

Схема запчастей Case IH 1680 - (9B-34) - CONCAVES, CONCAVES AND GRATES (14) - ROTOR, CONCANVES & SIEVE
21
2
7
14
16
17
25
16
31
4
13
8
9
32
12
32
33
13
27
19
29
31
18
10
20
26
28
24
6
15
32
5
32
31
3
22
1
23
30
22
10
18
11
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1309204C3

CONCAVE

ASSEMBLY - front, small wire, Includes: Ref 2 - 5

1шт.

1

193782C6

CONCAVE

ASSEMBLY - front, large wire, Includes: Ref. 2 - 5

1шт.

2

188193C2

ROD

- concave, 3/16 x 36 inch

30шт.

2

191485C2

ROD

- concave, 1/4 x 36 inch

14шт.

3

193859C1

PLATE

BAR - concave wire retaining

2шт.

4

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- self-locking, truss head Phillips, special, 3/8 NC x 1 inch

1шт.

5

231-5146

FLANGE NUT,3/8"-16

1шт.

6

1318557C1

CONCAVE

ASSEMBLY - front extension, small wire, Includes: Ref. 7

1шт.

7

1318563C1

SMALL PIN,4.76mm OD x 145mm L

PIN - small wire

30шт.

8

1318555C1

CONCAVE

ASSEMBLY - front extension, large wire, Includes: Ref. 9

1шт.

9

1318562C1

PIN

- large wire

14шт.

10

1309207C3

CONCAVE

ASSEMBLY - small wire, No. 2 and 3, Includes: Ref. 11 & 12

2шт.

11

188193C2

ROD

- concave, 3/16 x 36 inch

30шт.

12

193859C1

PLATE

BAR - concave wire retaining

2шт.

13

193783C5

CONCAVE

ASSEMBLY - large wire, No. 2 and 3, Includes: Ref. 14 & 15

2шт.

14

191485C2

ROD

- concave, 1/4 x 36 inch

14шт.

15

193859C1

PLATE

BAR - concave wire retaining

2шт.

16

1318558C1

CONCAVE

ASSEMBLY - extension, small wire, No. 2 and 3, Includes: Ref. 17

2шт.

17

1318563C1

SMALL PIN,4.76mm OD x 145mm L

PIN - small wire

30шт.

18

1318556C1

CONCAVE

ASSEMBLY - extension, large wire, No. 2 and 3, Includes: Ref. 19

2шт.

19

1318562C1

PIN

- large wire

14шт.

20

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

- hex serrated flange, 3/8 NC x 1 inch, grade 8

1шт.

21

231-5146

FLANGE NUT,3/8"-16

1шт.

22

1309207C3

CONCAVE

ASSEMBLY - small wire, No. 2 and 3, heat treated, Includes: Ref. 23 & 24

2шт.

23

188193C2

ROD

- concave, 3/16 x 36 inch

60шт.

24

193859C1

PLATE

BAR - concave wire retaining

4шт.

1300673C91

PACKAGE

KIT - concave filler, small wire, set of 6, no longer available, order components, Includes channel 1309425C1

1шт.

25

1309425C1

CHANNEL

- concave filler, small wire

6шт.

1300716C91

CHANNEL

KIT - concave filler, large wire, set of 6, no longer available, order components, Includes: channel 1309424C1

1шт.

25

1309424C1

CHANNEL

- concave filler, large wire

6шт.

26

191536C1

CHANNEL

- grate adjusting, corn, use with slotted grate

27шт.

27

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

29

191535C2

GRATE

- slotted, grain

3шт.

29

1302563C1

CONCAVE

- keystock, corn and rice

3шт.

29

1319405C1

GRATE

- smooth

3шт.

30

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

- hex serrated flange, 3/8 NC x 1 inch, grade 8

1шт.

31

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

- hex serrated flange, 3/8 NC x 1-1/4 inch, grade 8

1шт.

32

231-5146

FLANGE NUT,3/8"-16

1шт.

33

1324046C3

BAR

- concave, interrupter, small wire

1шт.
