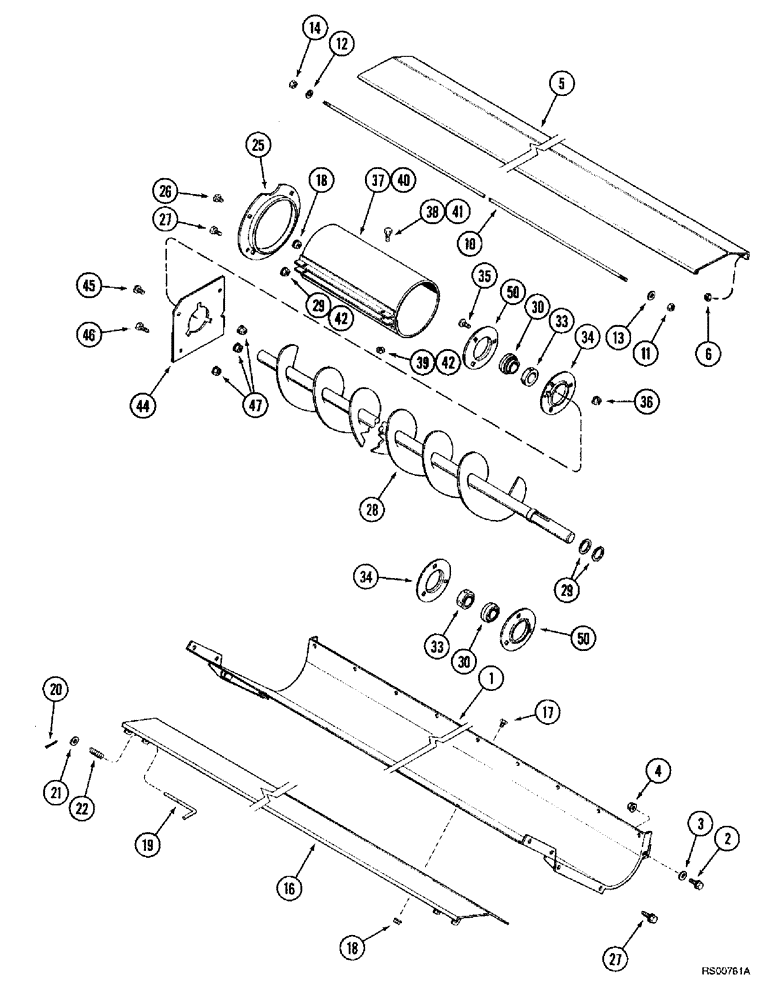

Запчасти Case IH 1680 (9D-16) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

1

192026C3

TROUGH

- auger

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

3

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

5

185196C1

DOOR

- trough

1шт.

6

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

1шт.

10

185197C1

ROD

- auger door, 1590 mm

1шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

14

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

1шт.

16

191978C2

TAILGATE

GATE - trough

1шт.

17

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

8шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

19

186736C3

ROD

PIN - latch

2шт.

20

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

22

540815R2

SPRING

- latch pin

2шт.

25

160324C2

FLANGE

- mounting

1шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

27

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

8шт.

28

192549C2

AUGER

- tailings

1шт.

29

495-81289

WASHER,1.25" ID x 2.75" OD x 0.16" Thk

- flat, 1-1/4 x 2-3/4 x 5/32 inch

1шт.

30

T33150

BALL BEARING,28.57mm ID x 62mm OD x 18mm W

BEARING - ball, auger

2шт.

33

557115R11

COLLAR

COLLAR - locking

2шт.

34

939460R91

FLANGE

- bearing

2шт.

36

231-5146

FLANGE NUT,3/8"-16

6шт.

37

192696C1

EXTENSION

- extension, non-perforated

1шт.

38

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

3шт.

39

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

40

195075C1

SCREEN

- extension, perforated

1шт.

41

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

44

183158C1

COVER

PLATE - bearing support

1шт.

45

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

3шт.

46

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

47

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

50

939461R1

FLANGE

- bearing

2шт.

35

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

6шт.
