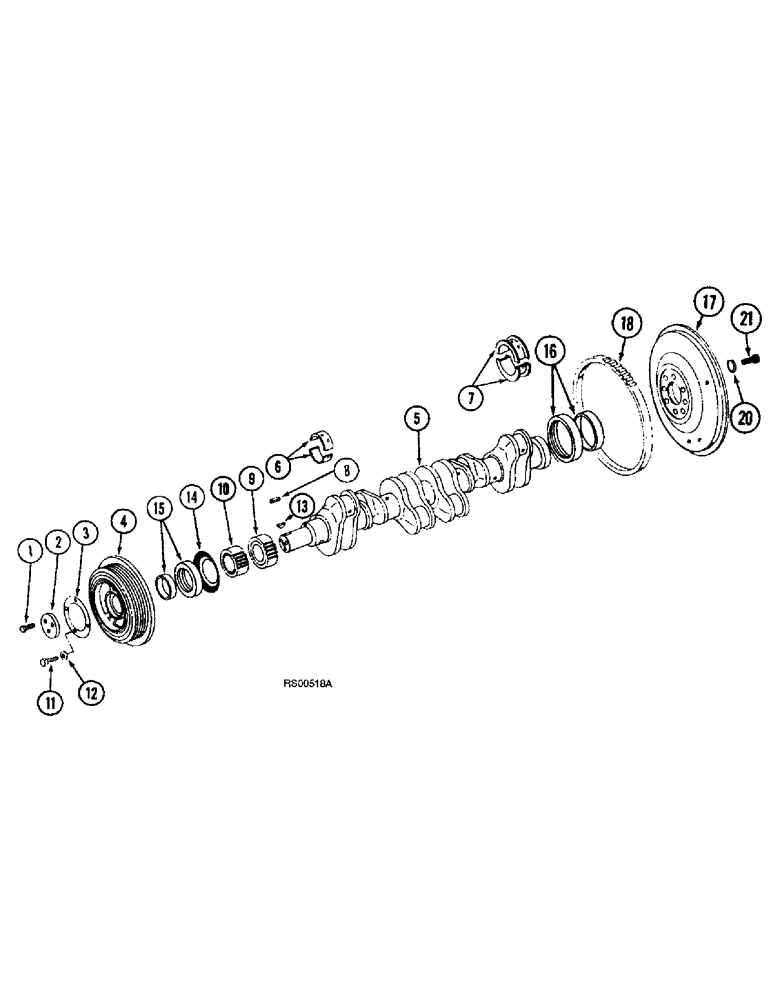

Запчасти Case IH 1680 (2-40) - CRANKSHAFT, FLYWHEEL AND BEARINGS, DTI-466C DIESEL ENGINE (01) - ENGINE

1

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

3шт.

2

675412C1

PLATE

- damper retaining

1шт.

3

682835C1

PLATE

- vibration damper

1шт.

4

683459C94

PULLEY

DAMPER - vibration

1шт.

5

179197A1

CRANKSHAFT

- engine, new, does not included bearings, replaces 675669C92 crankshaft

1шт.

5

749656C92

REMAN-CRANKSHAFT

Crankshaft Assembly - remanufactured, 0.030 inch undersize, includes bearings

1шт.

5

1928183C1

CORE-CRANKSHAFT

Return Part Number

1шт.

6

1808069C92

CRANKSHAFT BEARING

BEARING - crankshaft main

6шт.

6

1808070C92

CRANKSHAFT BEARING

BEARING - crankshaft main, 0.010 inch undersize

6шт.

6

1808071C92

CRANKSHAFT BEARING

BEARING - crankshaft main, 0.020 inch undersize

6шт.

6

1808072C91

BEARING LINER

BEARING - crankshaft main, 0.030 inch undersize

6шт.

7

684579C93

CRANKSHAFT BEARING,116.33mm ID x 122.68mm OD x 45.14mm W

BEARING - crankshaft main, rear, 2 halves, standard

1шт.

7

684582C93

CRANKSHAFT BEARING

BEARING - crankshaft main, 0.010 undersize, rear, 2 halves

1шт.

7

687394C3

CRANKSHAFT BEARING

BEARING - crankshaft main, 0.020 undersize, rear, 2 halves

1шт.

7

684585C93

BEARING SET

BEARING - crankshaft main, 0.030 undersize, rear, 2 halves

1шт.

REF

INSTRUCTION

BEARING ASSEMBLY - connecting rod, See Figure 2-42

6шт.

8

17135R1

LOCK PIN,5/32" x 5/16", Slotted

PIN, 5/32" x 5/16", Slotted

1шт.

9

675406C1

GEAR

- crankshaft, 32 teeth

1шт.

10

675364C1

GEAR

SPLINE - oil pump drive, 41 teeth

1шт.

11

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

12

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

4шт.

13

691044C1

KEY

- Woodruff, 5/16 x 1 inch

1шт.

14

687024C1

SEALING WASHER

WASHER - seal

1шт.

15

690437C94

SEAL KIT

KIT - crankshaft, front oil seal and wear sleeve, Includes: seal and sleeve

1шт.

NSS

NOT SOLD SEPARAT

SEAL - crankshaft front oil

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

16

1809964C92

OIL SEAL

KIT - crankshaft, rear oil seal and wear sleeve, Includes: Ref. seal, sleeve, gasket and diagram

1шт.

NSS

NOT SOLD SEPARAT

SEAL - crankshaft rear oil

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

332303R1

SEAL

- seal face plate

1шт.

NSS

NOT SOLD SEPARAT

DIAGRAM - seal installation

1шт.

NSS

NOT SOLD SEPARAT

FLYWHEEL ASSEMBLY - engine, Includes: Ref. 17 & 18

1шт.

17

683399C1

FLYWHEEL

- engine

1шт.

18

690252C1

GEAR

- ring, 132 teeth

1шт.

20

685902C1

WASHER

- hardened

8шт.

21

25277R1

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 8

- hex, 1/2 NF x 1-5/8 inch, grade 8

8шт.
