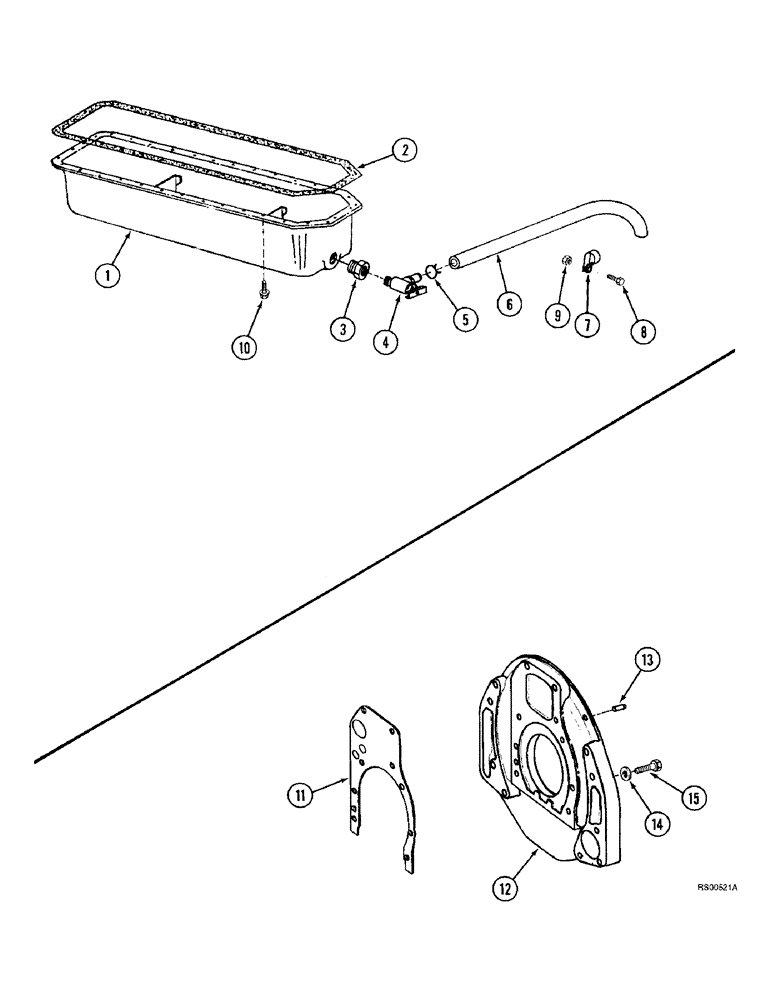

Запчасти Case IH 1680 (2-46) - OIL PAN, DTI-466C DIESEL ENGINE (01) - ENGINE

1

689481C91

PAN

- oil

1шт.

2

671827C4

OIL PAN GASKET SET

- oil pan

1шт.

3

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

4

301803R1

SHUT-OFF VALVE

VALVE - shutoff, oil drain hose

1шт.

5

214-1315

HOSE CLAMP,#15, 15/16", Spring

CLAMP, HOSE, #15, 15/16", Spring

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - 914 mm (36 inch) long, cut from S118576X bulk hose, see below, crankcase oil drain

1шт.

7

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

2шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

9

231-5146

FLANGE NUT,3/8"-16

1шт.

10

677490C1

SCREW

- oil pan

34шт.

S118576X

LARGE HOSE,15.88mm ID x 7620mm L

HOSE - bulk, 16 (5/8) ID x 7620 mm (300 inch) long

1шт.

11

682945C3

GASKET

- engine rear mounting plate

1шт.

12

683716C91

PLATE

ASSEMBLY - engine rear mounting plate, Includes: Ref. 13

1шт.

13

375362R1

PIN,12.69mm OD x 34.8mm L

- dowel, 1/2 x 1-3/8 inch, engine rear mounting plate

2шт.

14

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened, Engine rear mounting plate 17/32" x 1 1/16" x .134"

6шт.

15

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

Engine rear mounting plate Hex, 1/2"-13 x 1 3/4", G8

6шт.
