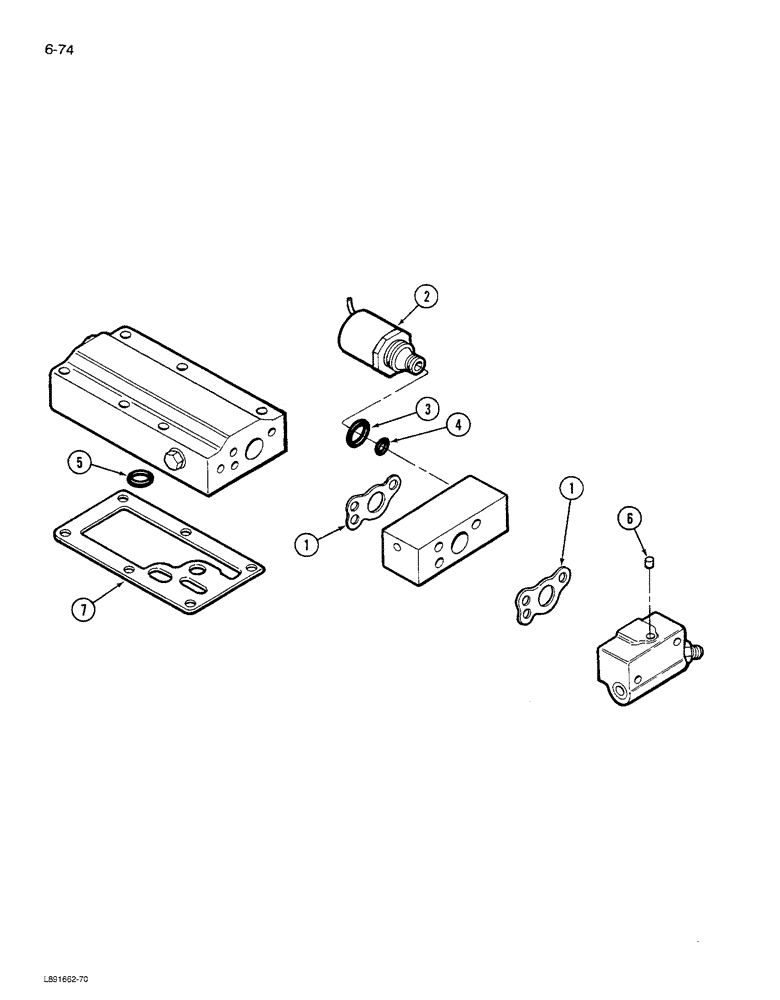

Запчасти Case IH 1680 (6-074) - HYDROSTATIC MOTOR ASSEMBLY, MOTOR CONTROL VALVE, TWO SPEED (03) - POWER TRAIN

145336C92

VALVE

ASSEMBLY - motor control

1шт.

1

1272954C1

GASKET,0.43mm Thk

- control block

2шт.

2

145338C2

SOLENOID

- control valve

1шт.

145338C2 - PARTS IN THIS CAN BE ORDERED SEPARATELY - 255834A1 - VALVE CARTRIDGE, 298985A1 - SOLENOID 2 - SPEED, 298986A1 - NUT - 1/2 - 20 NF - 1/4 THICK

1шт.

SEAL KIT FOR 145338C2 IS 1542831C1.

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 3/4" OD tube

1шт.

4

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

5

92647C1

O-RING,7.52mm ID x 0.574" OD x 3.53mm

- orifice retainer

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - valve body (Order 92649C91)

1шт.

7

145337C1

GASKET

- control valve

1шт.

92649C1

KIT

SERVICE KIT - body plug (Includes Ref. 1 and 6)

1шт.
