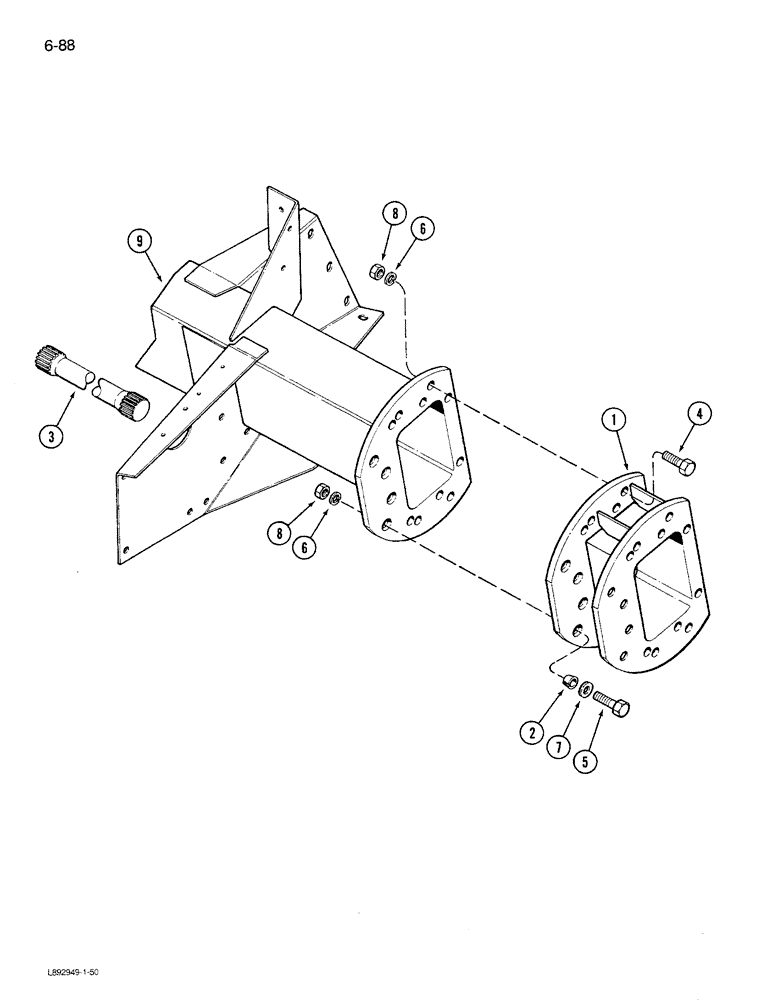

Запчасти Case IH 1680 (6-088) - AXLE EXTENSION, SHORT (03) - POWER TRAIN

1

177345C3

EXTENSION

- drive axle (Replaces 177345C2)

2шт.

2

163909C1

BUSHING,19.15mm ID x 28.57mm OD x 12.7mm L

DOWEL - end plate

8шт.

3

184188C1

SHAFT

- axle

2шт.

4

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4 NC x 2-1/4 inch, Grade 8

12шт.

5

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, Grade 8

4шт.

6

392-21075

LOCK WASHER,3/4"

3/4"

16шт.

7

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

8шт.

8

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, Grade 8

16шт.

9

REF

INSTRUCTION

AXLE - drive (See Figure 6-86)

1шт.
