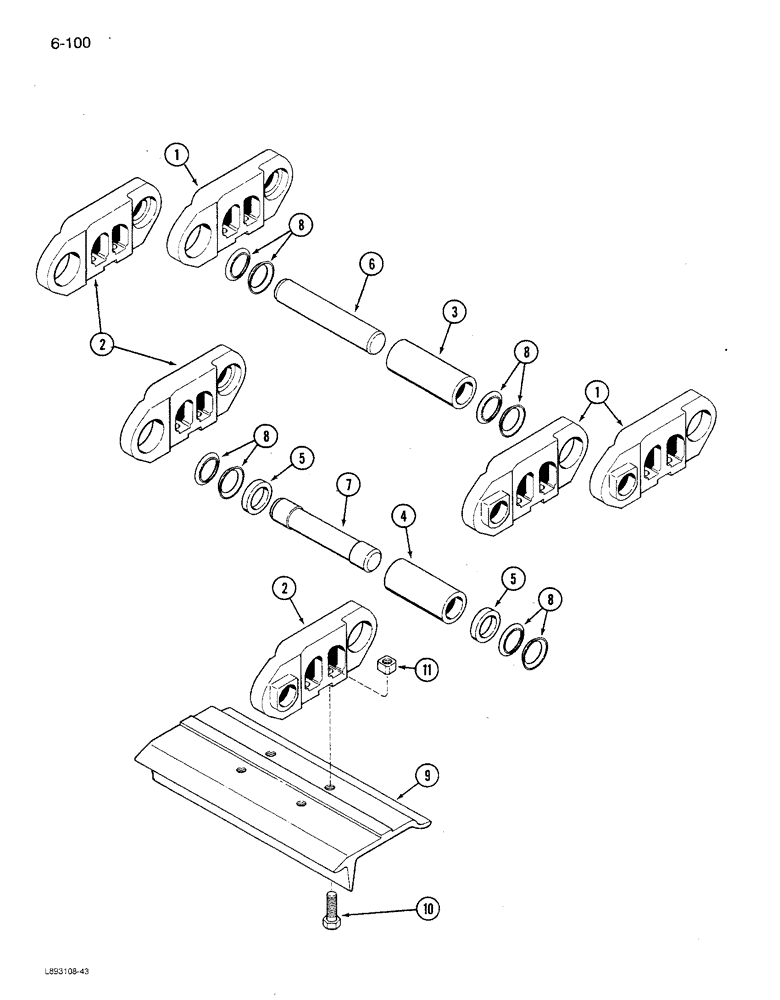

Запчасти Case IH 1680 (6-100[A]) - TRACK CHAIN, PRIOR TO P.I.N. JJC0117060 (03) - POWER TRAIN

186835C91

CHAIN (CE)

CHAIN ASSEMBLY - track, without shoes (41 links), Includes: Ref. 1 - 8

2шт.

1

622150C1

CHAIN (AG)

LINK - track, left

82шт.

2

622151C1

LINK

- track, right

82шт.

3

621296C1

BUSHING

- link

80шт.

4

621297C1

BUSHING

- link, master

2шт.

5

616180C1

SPACER

- master link

4шт.

6

263943R1

PIN

- chain link

80шт.

7

616181C1

PIN

- master link

2шт.

8

616178C1

SPRING WASHER

- seal spring

320шт.

9

4029537R1

SHOE

- track, 20 inch (Alternate with 196085C1)

82шт.

9

196085C1

SHOE

- track, 20 inch (Alternate with 4029537R1)

82шт.

10

328-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

328шт.

11

616192C1

NUT

- track shoe bolt

328шт.
