(6-100[B]) - TRACK CHAIN, P.I.N. JJC0117060 & AFTER

Запчасти Case IH 1680 (6-100[B]) - TRACK CHAIN, P.I.N. JJC0117060 & AFTER (03) - POWER TRAIN

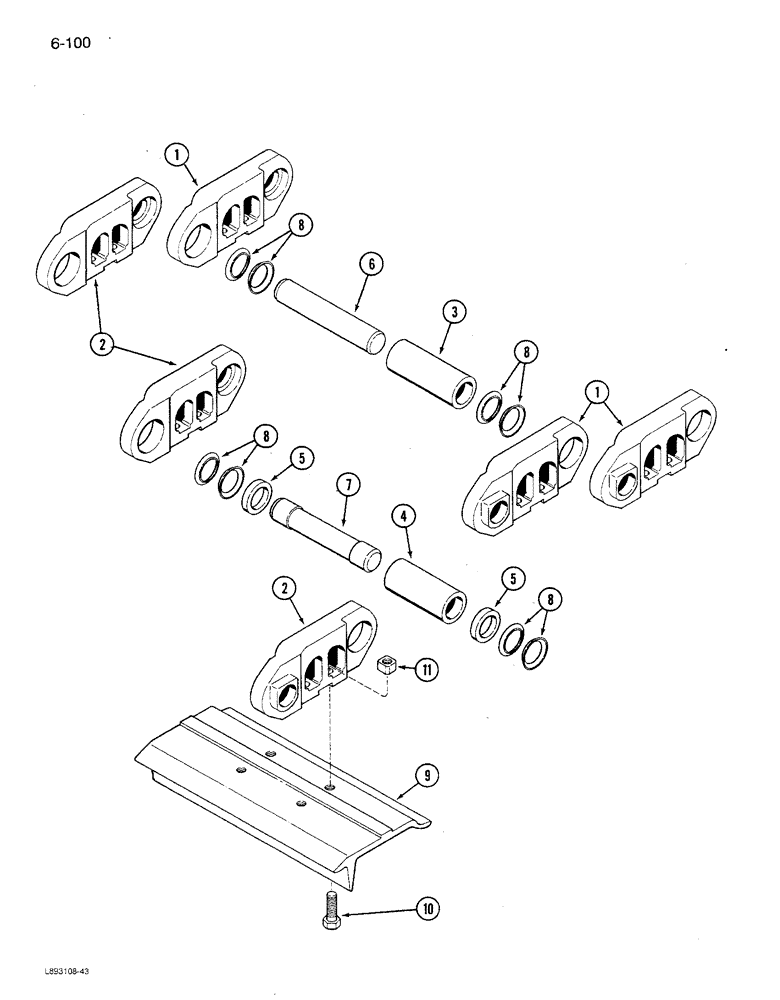

Схема запчастей Case IH 1680 - (6-100[B]) - TRACK CHAIN, P.I.N. JJC0117060 & AFTER (03) - POWER TRAIN
7
2
3
8
5
11
1
8
2
5
6
9
4
8
8
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1541593C1

TRACK CHAIN

CHAIN ASSEMBLY - track with shoes, Includes: Ref. 1 - 11

2шт.

1541710C1

TRACK CHAIN

CHAIN ASSEMBLY - track without shoes, Includes: Ref. 1 - 8

2шт.

1

R57403

CHAIN LINK

LINK, CHAIN, Track, LH

78шт.

2

R57404

CHAIN LINK

LINK, CHAIN, Track, RH

78шт.

3

R57378

BUSHING

- link

76шт.

4

R57379

BUSHING

- link master

2шт.

5

R57411

SPACER

- link master

4шт.

6

R57367

PIN

- chain link

76шт.

7

R57366

PIN,28.24mm OD x 167mm L

- master link

2шт.

8

R52291

SEAL

WASHER - seal spring

312шт.

9

R57420

TRACK SHOE

SHOE - track 20 inch single grouser

78шт.

10

R57374

BOLT

BOLT - hex, 9/16 x 1-25/32 inch

312шт.

11

R57375

SQUARE NUT

- track shoe bolt

312шт.
