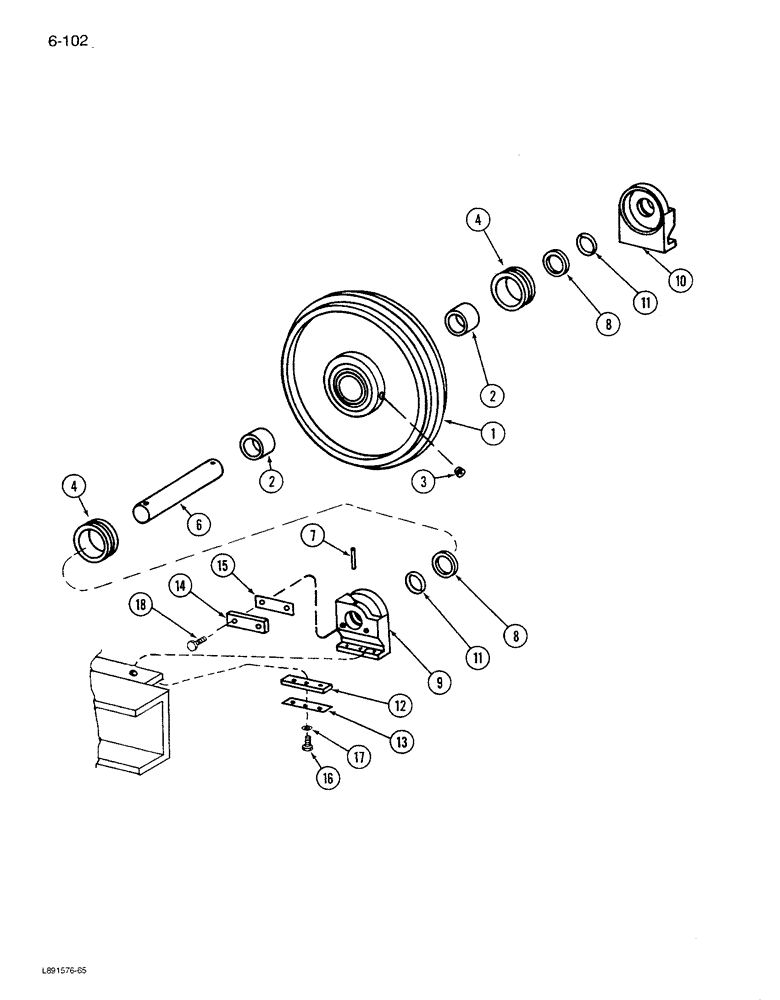

Запчасти Case IH 1680 (6-102[A]) - TRACK IDLER, PRIOR TO P.I.N. JJC0117060 (03) - POWER TRAIN

621414C93

FRONT IDLER

ROLLER ASSEMBLY - idler, front and rear, Includes: Ref. 1 - 11

4шт.

1

621415C92

ROLLER

ASSEMBLY - idler

4шт.

2

621417C4

BEARING

BUSHING - idler roller

8шт.

3

444783

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - pipe, 3/8-18 inch PT

4шт.

4

740915C91

OIL SEAL

SEAL KIT - track

8шт.

6

621418C1

SHAFT

- idler

4шт.

7

138-2066

PIN,3/8" x 1 1/2", Coiled

8шт.

8

621419C1

THRUST WASHER

- thrust

8шт.

9

621420C1

HOUSING

SUPPORT - roller, left

4шт.

10

621421C1

HOUSING

SUPPORT - roller, right

4шт.

11

655266C1

O-RING,1.734" ID x 0.144" Width

- roller support, 1-3/4 x 2 x 1/8 inch

8шт.

12

622044C1

PLATE

BAR - rear idler wear

4шт.

13

621423C1

SHIM

- rear idler support bottom

8шт.

14

621424C1

PLATE

BAR - rear idler side thrust

4шт.

15

621427C1

SHIM

- rear idler support side

12шт.

16

426-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

- hex, 7/16 NC x 1-1/4 inch, Grade 8

24шт.

17

366863C1

LOCK WASHER

WASHER - lock, 7/16 inch

24шт.

18

24872R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

16шт.
