(4-024) - CONSOLE HARNESS, RIGHT SIDE, P.I.N. JJC0117060 AND AFTER (CONTD)

Запчасти Case IH 1680 (4-024) - CONSOLE HARNESS, RIGHT SIDE, P.I.N. JJC0117060 AND AFTER (CONTD) (06) - ELECTRICAL

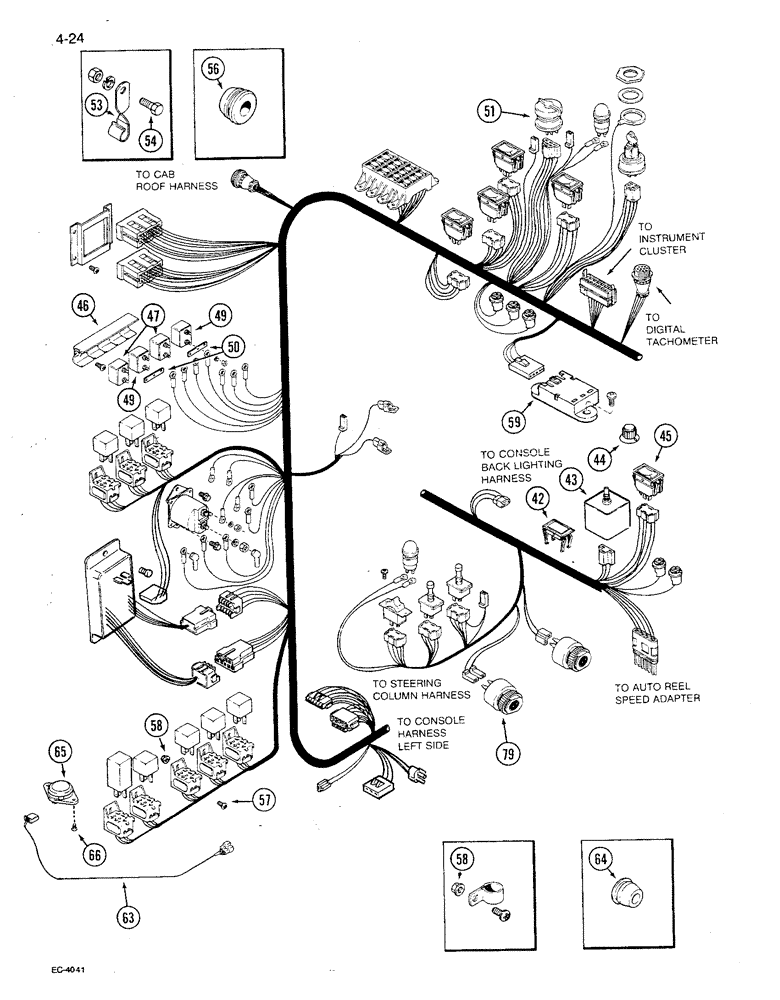

Схема запчастей Case IH 1680 - (4-024) - CONSOLE HARNESS, RIGHT SIDE, P.I.N. JJC0117060 AND AFTER (CONTD) (06) - ELECTRICAL
53
51
47
43
44
45
56
65
49
63
66
58
59
50
54
57
42
49
58
46
79
64
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

42

245334C1

PLUG

- panel switch cover, continued

1шт.

43

245653C2

SWITCH

ASSEMBLY - reel speed manual

1шт.

44

1345235C1

BUTTON

KNOB - control (Reel speed)

1шт.

45

245509C1

SWITCH

ASSEMBLY - reel, fore and aft

1шт.

46

245871C1

BRACKET

- circuit breaker

1шт.

47

245765C1

CIRCUIT-BREAKER,30A

BREAKER - worklight and blower circuit, 30 ampere

2шт.

49

245763C1

CIRCUIT-BREAKER,20A

BREAKER - cab circuit, 20 ampere

2шт.

50

245860C1

BAR

- breaker buss

2шт.

51

107200C2

LIGHT SWITCH

SWITCH ASSEMBLY - headlight

1шт.

53

363660R1

CLIP

- console harness, twisted

1шт.

54

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

56

92065C1

GROMMET

- rubber, console harness

1шт.

57

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- 1/4 x 1/2 inch slotted truss head

1шт.

58

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

1шт.

59

121770C2

TRANSMITTER

MODULE - coolant

1шт.

63

1345209C1

HARNESS

- seat switch

1шт.

64

195806C1

GROMMET

- hose, 3/4 inch ID

1шт.

65

1983395C1

IGNITION SWITCH

SWITCH - seat

1шт.

66

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan head Phillips, 1/4 x 1/2 inch

2шт.

79

1983568C1

BUZZER

ALARM - grain tank level

1шт.
