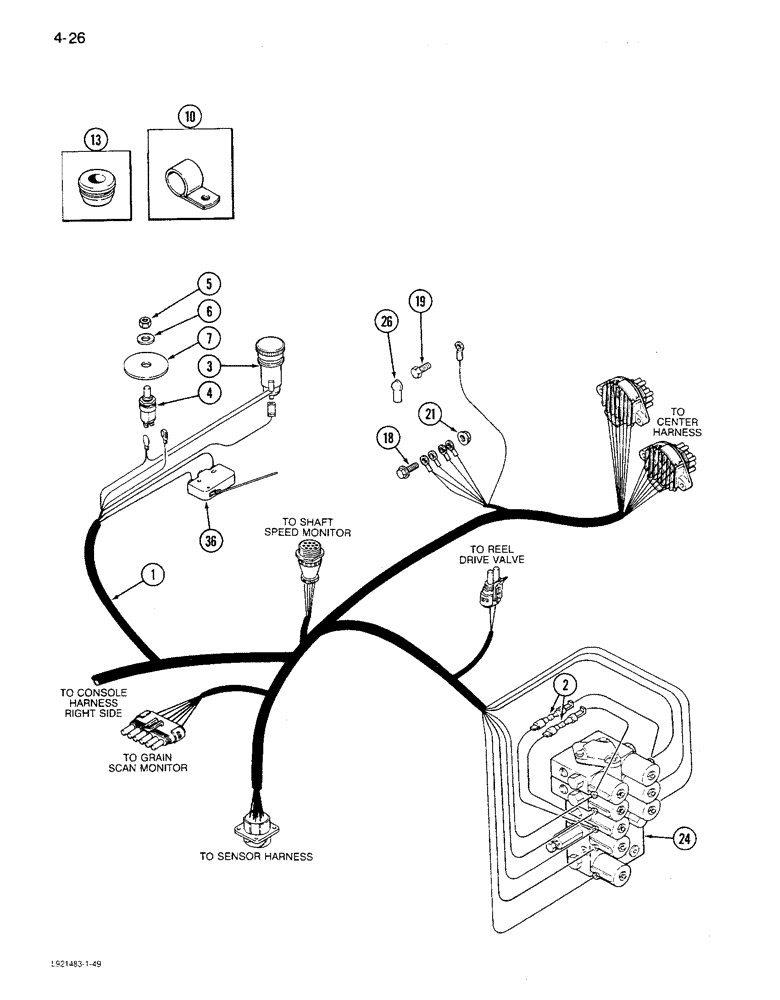

Запчасти Case IH 1680 (4-026) - CONSOLE HARNESS, LEFT SIDE, P.I.N. JJC0117060 AND AFTER (06) - ELECTRICAL

1

1994820C1

HARNESS

- console

1шт.

2

548239R2

RECTIFIER

DIODE ASSEMBLY - console harness

2шт.

3

245576C1

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigar, 12 volt, Includes: Ref. 3

1шт.

3

378781R1

LIGHTER, CIGARETTE

LIGHTER - pop up element

1шт.

4

1983341C1

SWITCH

ASSEMBLY - parking brake warning light

1шт.

5

68107H

LOCK NUT

- light switch

1шт.

6

166817C2

WASHER

- light switch

1шт.

7

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

1шт.

7

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - console harness, front

1шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, console harness

1шт.

18

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- flanged hex lock, 1/4 NC x 3/4 inch

2шт.

19

25222R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch

2шт.

21

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figures 8-70 and 8-72)

1шт.

26

399470R1

BOOT

- cable

1шт.

36

1310827C2

SWITCH

- third gear lockout

1шт.
