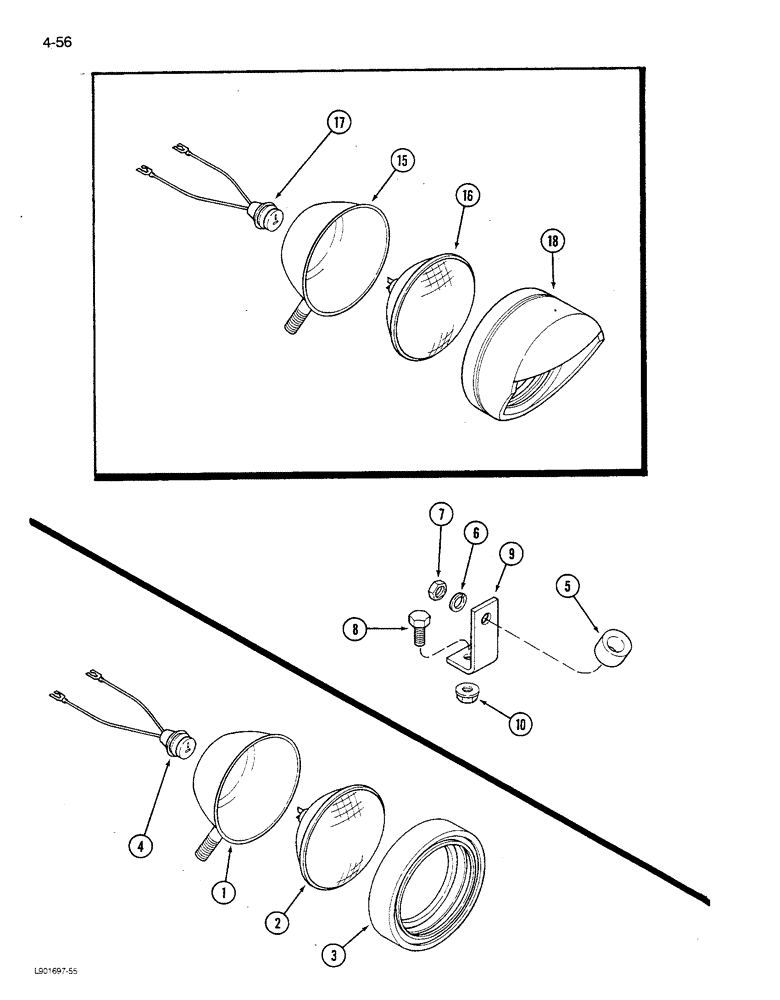

Запчасти Case IH 1680 (4-056) - GRAIN TANK & UNLOADER LIGHT (06) - ELECTRICAL

245954C91

LAMP

ASSEMBLY - grain tank and unloader, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - light (Order 245954C91)

1шт.

2

A42294

SEALED BEAM UNIT

LAMP - No. 4406

1шт.

3

A25213

RETAINER

- shockproof (Use with Hobbs light)

1шт.

3

1252609C1

RETAINER

- shockproof (Use with Midwest light)

1шт.

4

530029R91

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - light

1шт.

5

D37048

BUSHING

- pivot

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

8

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

1шт.

9

1317942C1

BRACKET

- grain tank light

1шт.

10

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

245953C91

LAMP

LIGHT ASSEMBLY - grain tank (Order 245954C91), Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - light (Order 245954C91), grain tank light prior to pin JJC0047413

1шт.

16

28625R1

LAMP

- No. 4414, grain tank light prior to pin JJC0047413

1шт.

17

530029R91

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - light, grain tank light prior to pin JJC0047413

1шт.

18

107471C1

RETAINER

HOOD - light, grain tank light prior to pin JJC0047413

1шт.
