(4-060) - REAR LIGHTS AND FUEL SENDER HARNESS, P.I.N. JJC0117060 AND AFTER

Запчасти Case IH 1680 (4-060) - REAR LIGHTS AND FUEL SENDER HARNESS, P.I.N. JJC0117060 AND AFTER (06) - ELECTRICAL

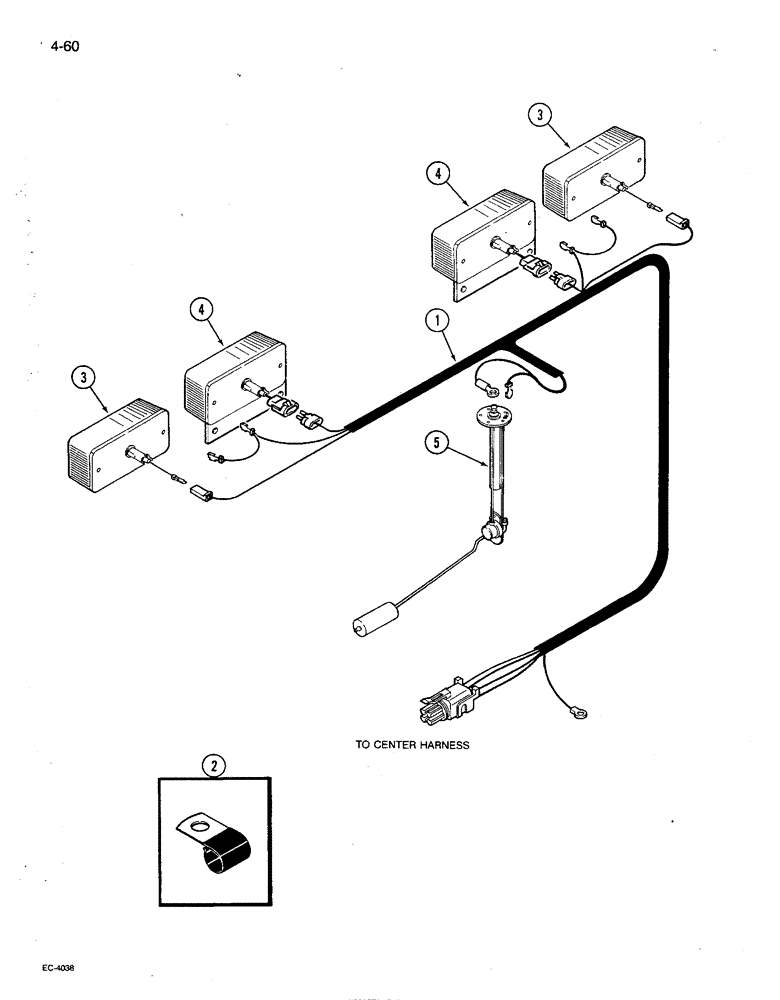

Схема запчастей Case IH 1680 - (4-060) - REAR LIGHTS AND FUEL SENDER HARNESS, P.I.N. JJC0117060 AND AFTER (06) - ELECTRICAL
2
4
4
1
3
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1994847C1

HARNESS

ASSEMBLY - rear lights and fuel sender

1шт.

2

92070C1

CLAMP,1 1/4", Insul, 7/16" Bolt

- insulated retaining

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness retaining

6шт.

3

REF

INSTRUCTION

LAMP ASSEMBLY - warning rear (See Figure 4-62)

2шт.

4

REF

INSTRUCTION

LAMP ASSEMBLY - tail (See Figure 4-6)

2шт.

5

REF

INSTRUCTION

GAUGE - fuel level sending unit (See Figure 3-16)

1шт.
