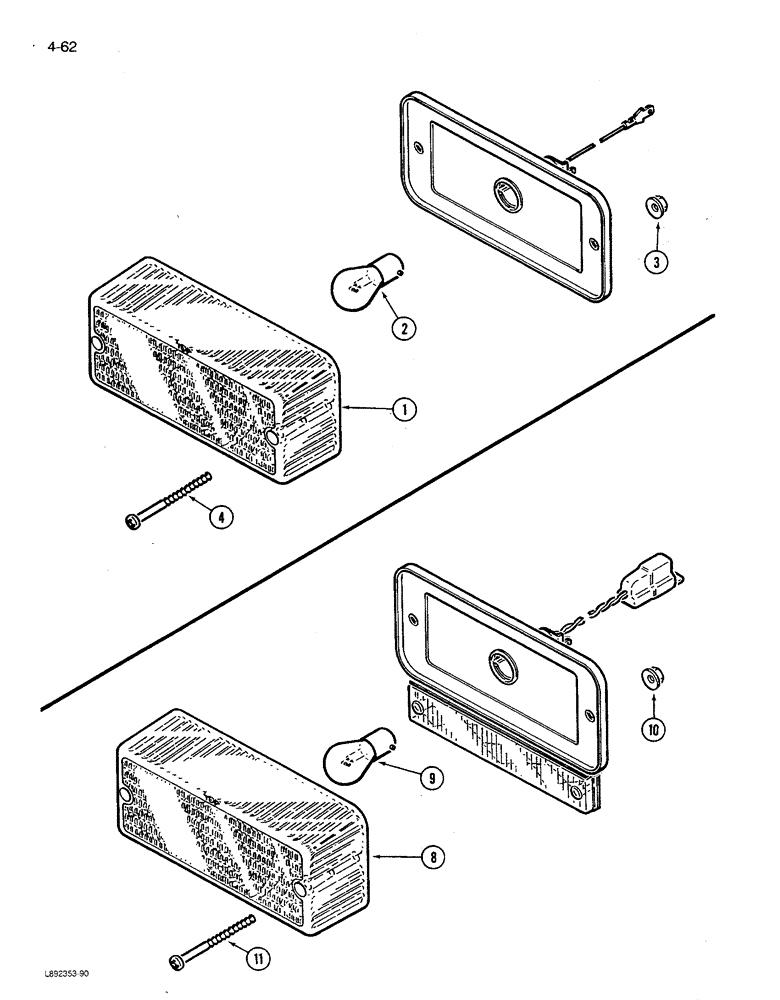

Запчасти Case IH 1680 (4-062) - FRONT AND REAR WARNING LIGHT (06) - ELECTRICAL

130882C91

LAMP

LIGHT ASSEMBLY - warning (amber), Includes: Ref. 1 - 4

4шт.

1

130883C1

LENS

- amber

1шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

3

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24 NC

2шт.

4

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

- pan head machine, No.10-24 NC x 2-1/4 inch

2шт.

92260C1

LAMP,12V, 27W, Red

LIGHT ASSEMBLY - stop and tail (red), Includes: Ref. 8 - 11

2шт.

8

216045C1

LENS

- red, stop and tail light

1шт.

9

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, stop and tail light

1шт.

10

174097C1

FLANGE NUT,Flg, USR, #10-24

- hex flange lock, No. 10-24 NC, stop and tail light

2шт.

11

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

SCREW - pan head machine, No. 10-24 NC x 2-1/4 inch, stop and tail light

2шт.
