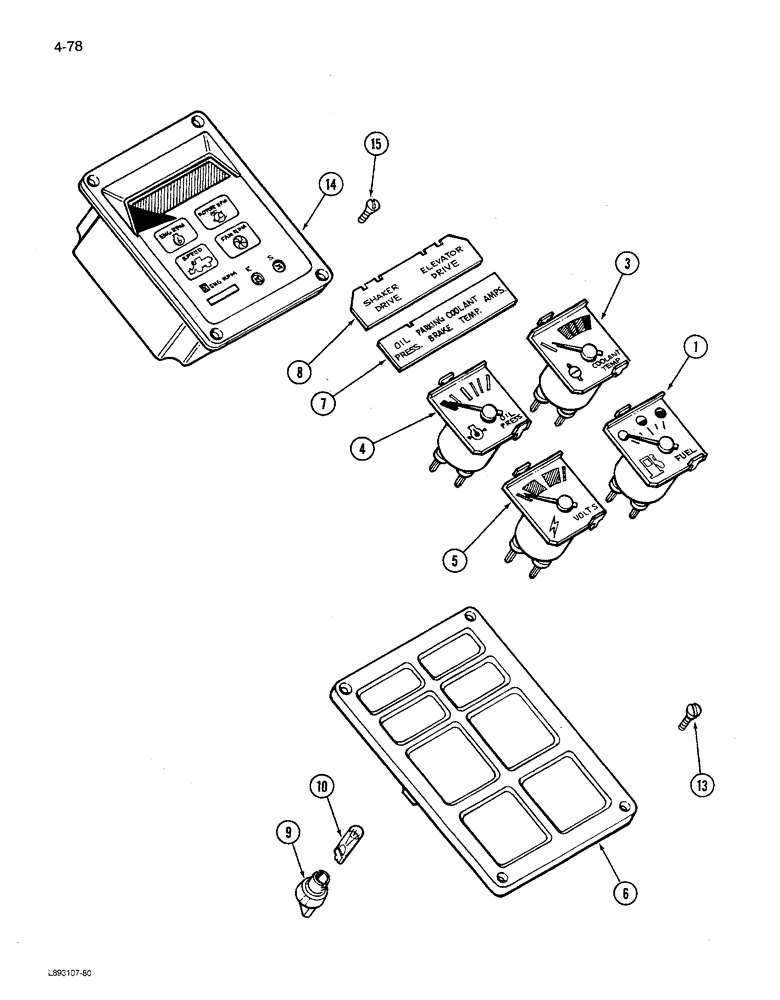

Запчасти Case IH 1680 (4-078) - INSTRUMENT CLUSTER AND TACHOMETER (06) - ELECTRICAL

1983246C1

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instrument gauges, Includes: Ref. 1 - 10

1шт.

1

121604C1

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

3

121605C2

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

4

121606C1

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

5

121607C1

METER

VOLTMETER - engine

1шт.

6

121608C1

GASKET

BEZEL AND GASKET ASSEMBLY - cluster

1шт.

7

187597C1

LENS

- oil pressure, brake, temperature and amperes

1шт.

8

1979357C1

LENS

- warning light, shaker and elevator, coolant level

1шт.

9

121611C1

SOCKET

ASSEMBLY - instrument cluster

8шт.

10

20627R1

BULB,C2F, #194, 14V

- light, No. 194

8шт.

13

27204R1

SELF-TAP SCREW

- oval head, No. 10-16 x 3/4 inch

4шт.

14

1935114C1

ELECTRICAL GAUGE

TACHOMETER - engine, remanufactured (North America only)

1шт.

14

1935113C1

CORE

RETURN NUMBER - use this part number to return tachometer core for credit

1шт.

14

1987322C1

TACHOMETER

- engine

1шт.

15

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval head, No. 10-16 x 3/4 inch

4шт.
