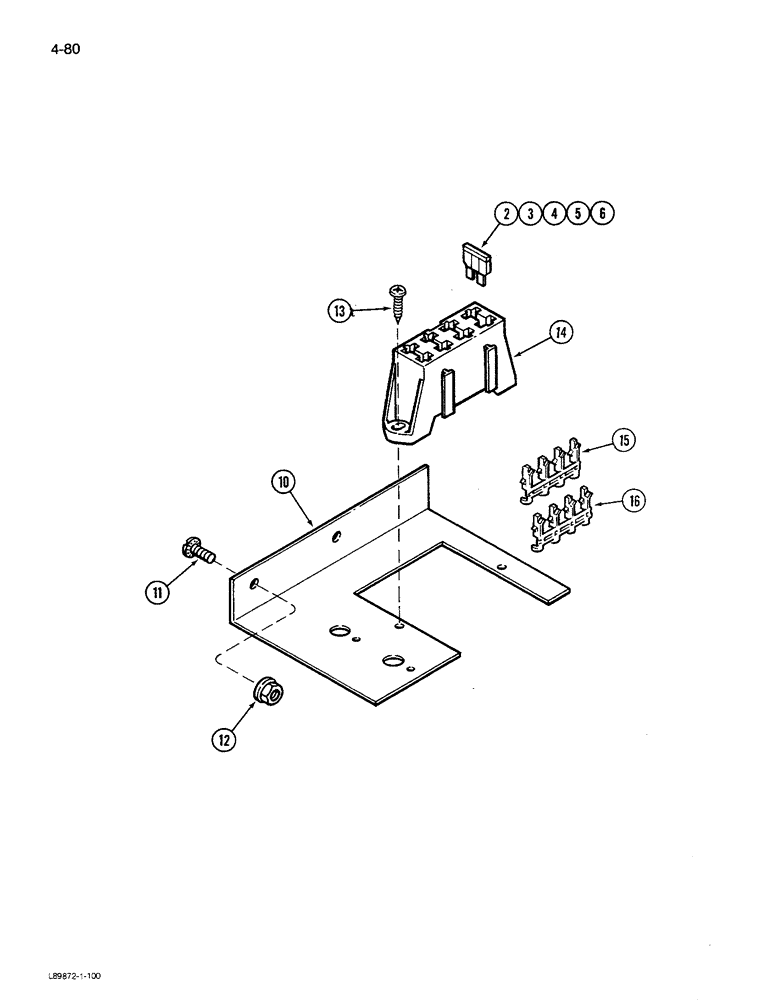

Запчасти Case IH 1680 (4-080) - FUSE AND FUSE BLOCK (06) - ELECTRICAL

2

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue)

2шт.

3

A149800

FUSE,10 Amp

- 10 ampere (Red)

5шт.

4

A149804

FUSE

- 30 ampere (Light green)

1шт.

5

A149798

FUSE

- 5 ampere (Tan)

2шт.

6

A149796

FUSE

- 3 ampere (Violet)

2шт.

10

1280162C3

SUPPORT

- fuse block

1шт.

11

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

2шт.

12

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

13

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head tap, 1/4 x 1/2 inch

2шт.

14

245435C1

FUSE HOLDER

BLOCK - fuse (Part of console harness, see Figure 4-96), Includes: Ref. 15 and 16

3шт.

15

506504C1

TERMINAL CONNECTOR,Female, 1 - 2 mm2

TERMINAL - fuse block (Type L10)

1шт.

16

506498C1

TERMINAL CONNECTOR

TERMINAL - fuse block (Type L11)

1шт.
