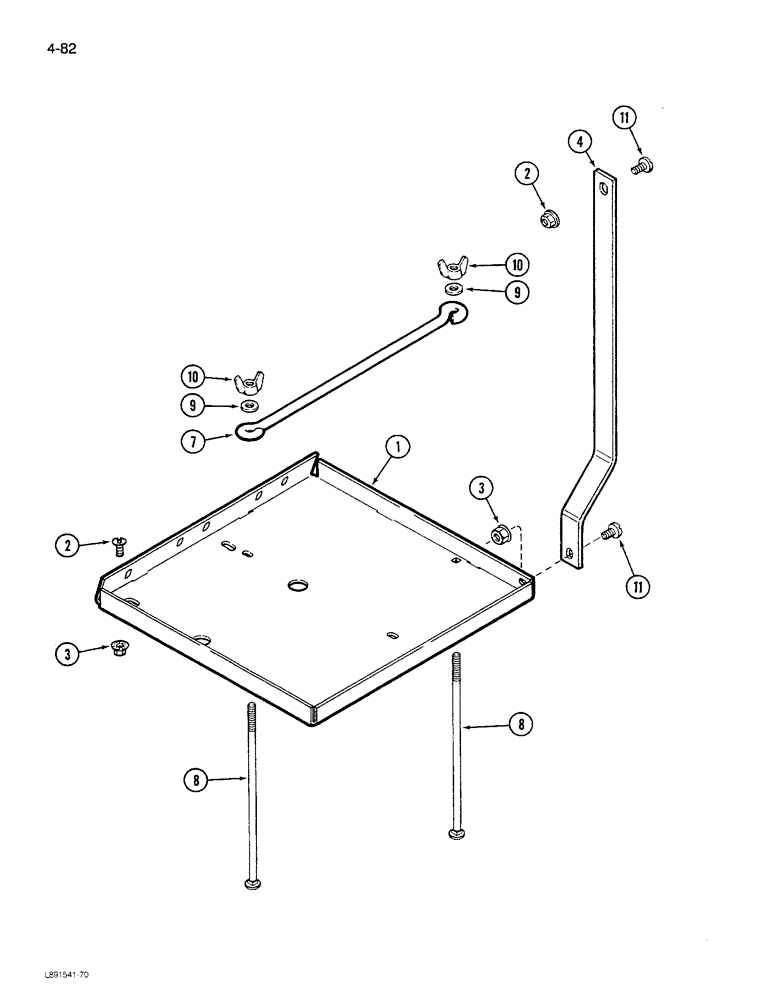

Запчасти Case IH 1680 (4-082) - BATTERY TRAY (06) - ELECTRICAL

1

194267C6

TRAY

- battery (Replaces 194267C5)

1шт.

2

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

3шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

5шт.

4

1977192C2

STRAP

SUPPORT - tray, battery

1шт.

7

188116C1

CLAMP

- battery hold down

1шт.

8

411-5152

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9 1/2", Gr 2

BOLT - round head square neck, 5/16 NC x 9-1/2 inch

2шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

10

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

2шт.

11

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.
