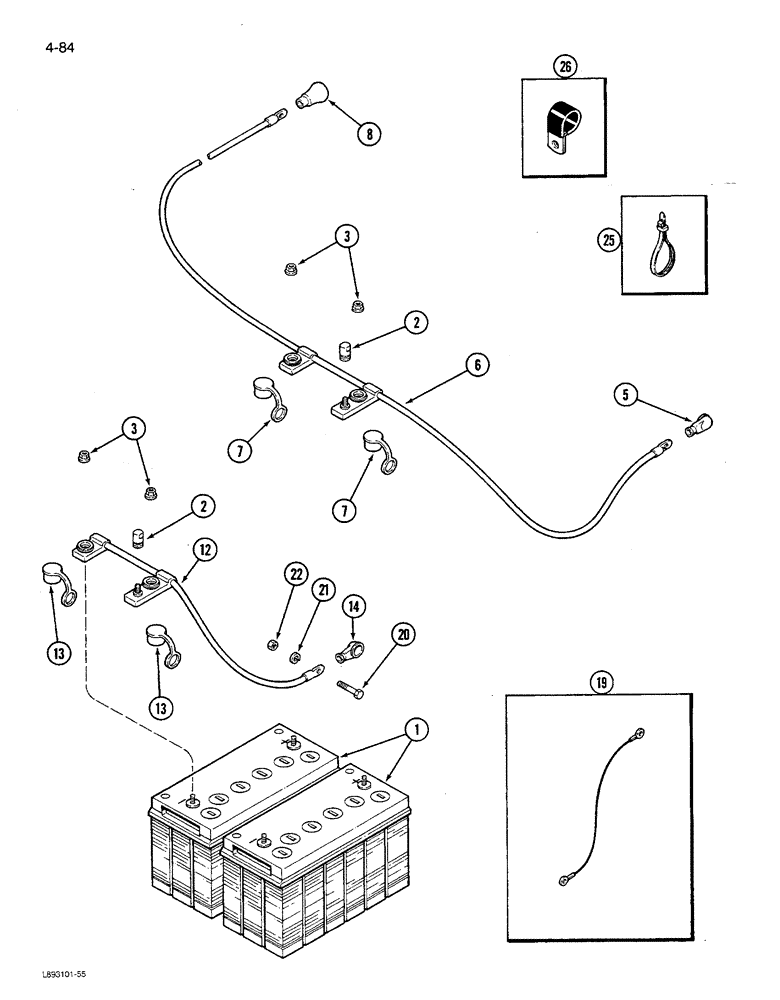

Запчасти Case IH 1680 (4-084) - BATTERY & BATTERY CABLES, W/STUD POSTS, PRIOR TO P.I.N. JJC0115301 (06) - ELECTRICAL

1

BMF31GS

DRY BATTERY

BATTERY - dry charged, 12 volt

2шт.

2

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

- jump start

1шт.

3

476074C1

NUT

- hex lock, 3/8 inch NC

4шт.

5

S115407

BOOT

- battery cable

1шт.

6

1964782C3

CABLE

ASSEMBLY - battery, positive, Includes: Ref. 7 and 8

1шт.

For combines without feeder-reverse attachment. For combines with feeder-reverse attachment, see figure 4-74.

1шт.

7

NSS

NOT SOLD SEPARAT

BOOT - battery cable

2шт.

8

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

12

245226C2

CABLE PULLING GRIP

CABLE - battery, ground, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

BOOT - battery cable

2шт.

14

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

19

158477C91

CABLE

ASSEMBLY - cab and valve bank ground

2шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

25

702093C1

CABLE TIE

STRAP - cable tie

1шт.

26

R14668

CLAMP

- battery cable

10шт.
