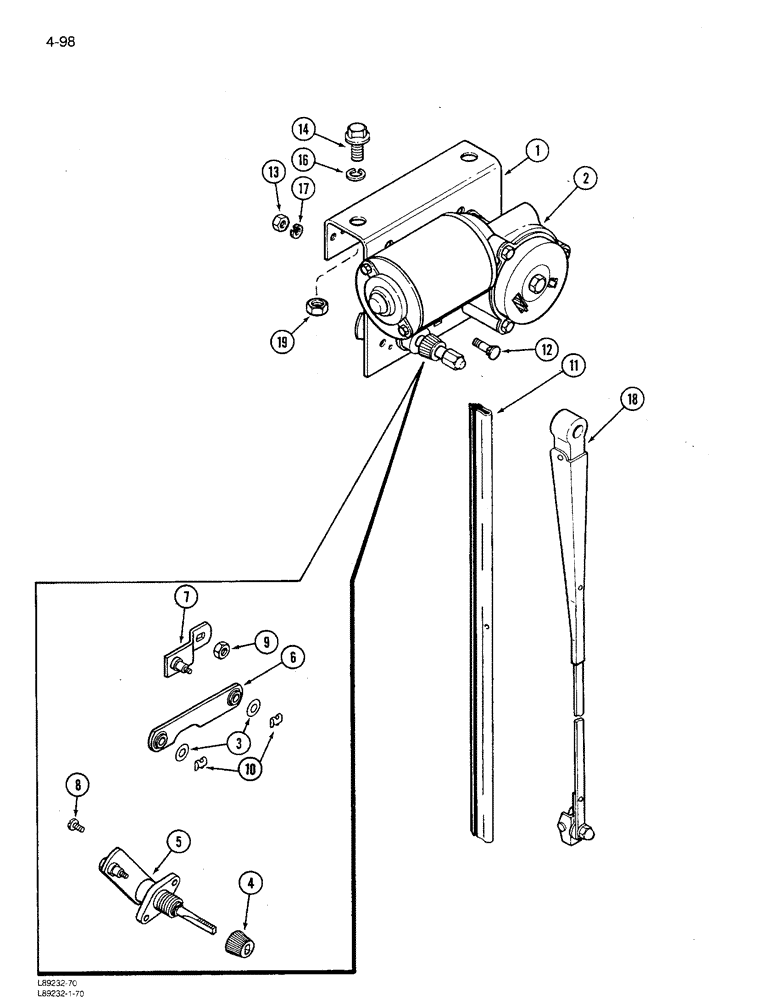

Запчасти Case IH 1680 (4-098) - WINDSHIELD WIPER ASSEMBLY (06) - ELECTRICAL

1

1276130C92

WIPER MOTOR

WIPER ASSEMBLY - windshield (With mounting bracket), Includes: Ref. 2

1шт.

2

F96765

WIPER MOTOR

MOTOR ASSEMBLY - wiper (Without mounting bracket), Includes: Ref. 3 - 10

1шт.

3

148074R1

WASHER

- flat

2шт.

4

1267556C1

BUTTON

NUT - knurled drive

1шт.

5

196796C1

SHAFT ASSY.

SHAFT AND PIVOT ASSEMBLY - wiper motor

1шт.

6

260514C91

LINK

ASSEMBLY - connecting

1шт.

7

A36091

ARM

ASSEMBLY - drive

1шт.

8

118129C1

SCREW

- retaining (with washer)

2шт.

9

27122R1

LOCK NUT,1/4"-28, GC

NUT - retaining

1шт.

10

739487C1

CLIP

- spring

2шт.

11

1327520C1

WIPER BLADE

BLADE - wiper, 22 inch

1шт.

12

412-416

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1", Gr 2

BOLT - round head square neck, 1/4 NC x 1 inch

1шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

14

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

BOLT - hex flange lock, 3/8 NC x 3/4 inch

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

1321282C1

ARM

- wiper, 18 inch

1шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.
