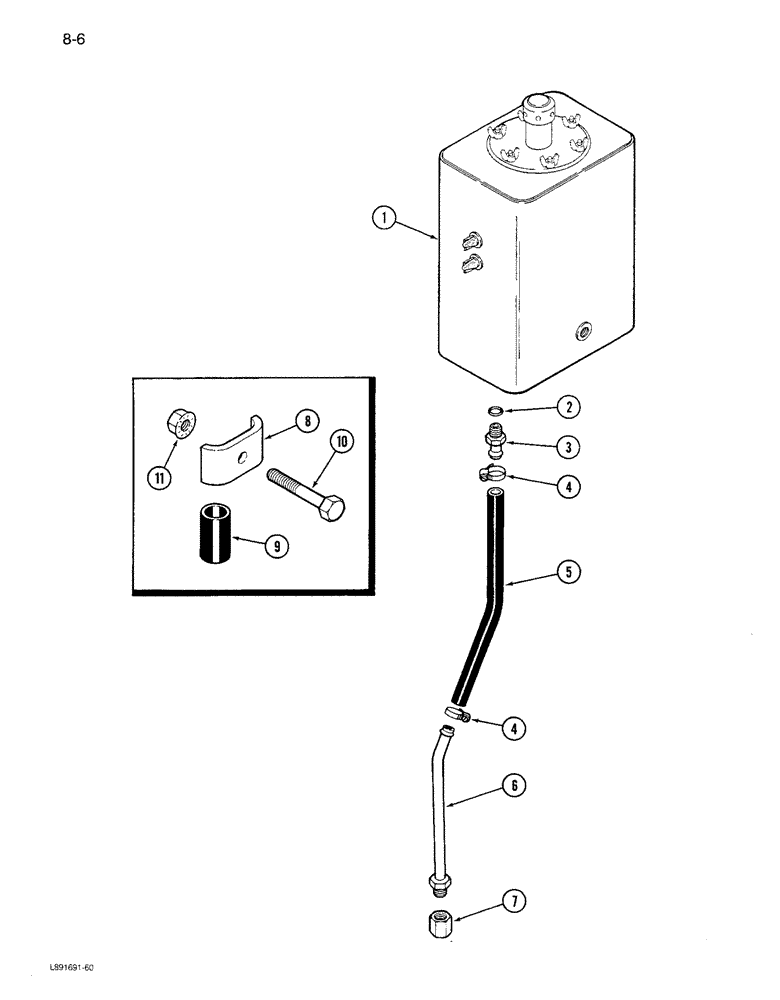

Запчасти Case IH 1680 (8-006) - HYDRAULIC RESERVOIR DRAIN, PRIOR TO P.I.N. JJC0047918 (07) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR ASSEMBLY - hydraulic (See Figure 8-2)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

196816C1

FITTING

CONNECTOR - drain

1шт.

4

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, No. 12, Type F

2шт.

5

NSS

NOT SOLD SEPARAT

HOSE - oil, 7 inch (Order S118576X and, Serial Range: cut-length)

1шт.

6

187822C1

HYD TUBE,5/8" OD, 14, 1.2" Length

TUBE - drain

1шт.

7

218-756

CAP,37 Degree, 7/8"-14

Drain tube 37º, 7/8"-14

1шт.

8

165601C1

CLAMP

- reservoir drain tube

1шт.

9

163492C1

RUBBER INSULATOR

STRIP - tube clamp

1шт.

10

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

1шт.

11

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.
