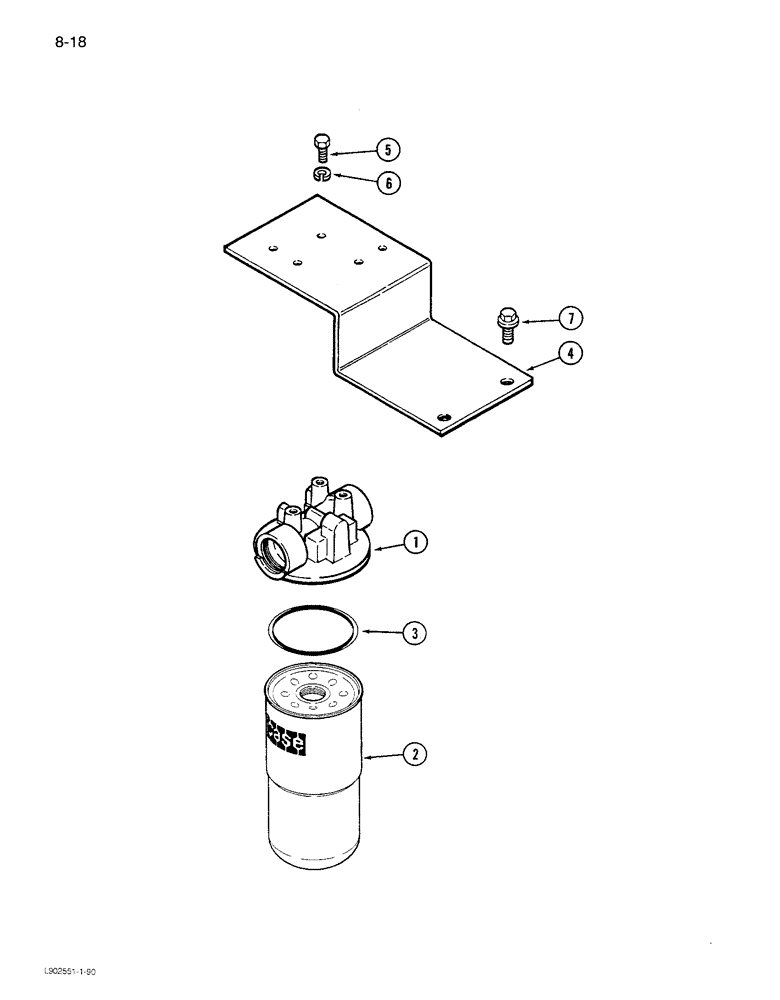

Запчасти Case IH 1680 (8-018) - HYDRAULIC SYSTEM RETURN FILTER, CORN, GRAIN & RICE COMBINE, P.I.N. JJC0047918 & AFTER (07) - HYDRAULICS

87784C91

FILTER ASSY

FILTER ASSEMBLY - system return, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter (Order 87784C91)

1шт.

2

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter

1шт.

4

1979992C2

SUPPORT

BRACKET ASSEMBLY - return filter

1шт.

5

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

6

492-11038

LOCK WASHER,3/8"

3шт.

7

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

2шт.

1329214C1

HYDRAULIC OIL FILTER

SERVICE KIT - element (Includes: Ref. 2 and 3)

1шт.
