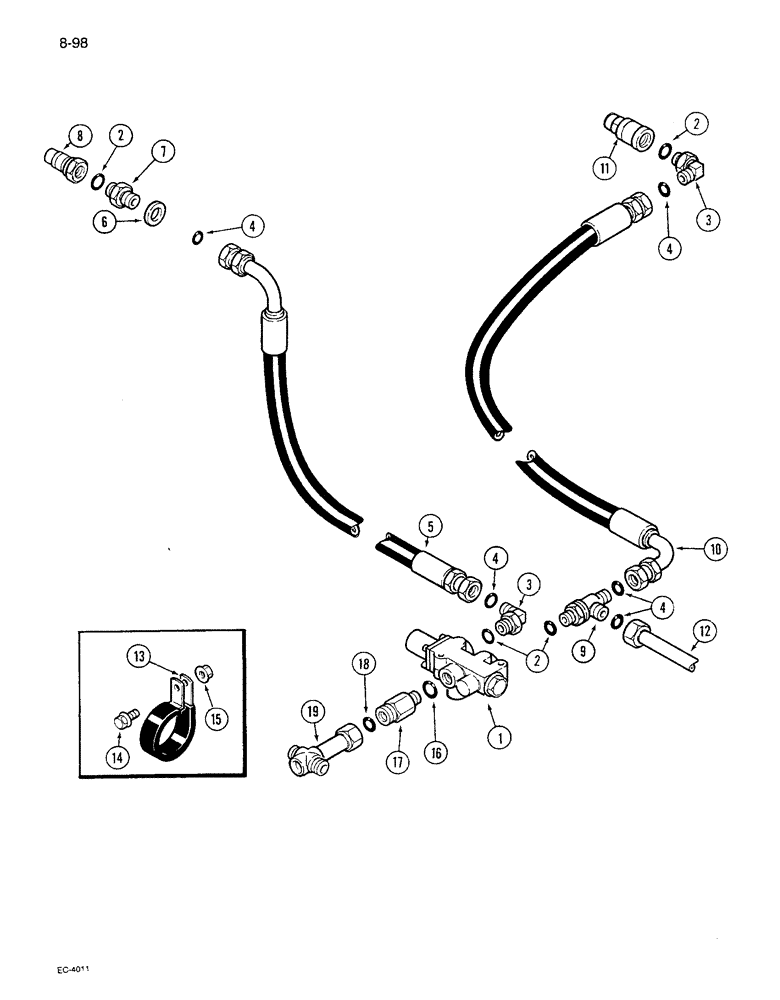

Запчасти Case IH 1680 (8-098) - REEL DRIVE CIRCUIT, P.I.N. JJC0117060 AND AFTER (07) - HYDRAULICS

1

1272619C93

VALVE

- flow divider (See Figure 8-112)

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- flow divider valve

1шт.

3

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- header return

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

1989495C1

HOSE

ASSEMBLY - reel motor supply, pressure

1шт.

6

1345266C1

WASHER

- white

1шт.

7

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., 1"-14 ORFS x 7/8"-14 ORB

1шт.

8

1272399C1

UNION

COUPLER - male

1шт.

9

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

- 1-14 face branch x face x 7/8-14 inch adj O-ring

1шт.

10

1989496C1

HOSE

ASSEMBLY - reel drive motor return

1шт.

11

1282338C91

COUPLING, QUICK, FEM

COUPLING - female

1шт.

12

1989476C1

HYD TUBE

TUBE ASSEMBLY - reel drive return (See Figure 8-152)

1шт.

13

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

- closed, 1-7/8 inch diameter

4шт.

14

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

4шт.

15

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

4шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

1541634C1

VALVE

- relief, pressure regulator

1шт.

18

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

19

1541633C1

TEE

- branch, feeder clutch valve (See Figure 8-152)

1шт.
