(8-110) - REEL DRIVE PUMP ASSEMBLY, P.I.N. JJC0046598 THROUGH JJC0117059

Запчасти Case IH 1680 (8-110) - REEL DRIVE PUMP ASSEMBLY, P.I.N. JJC0046598 THROUGH JJC0117059 (07) - HYDRAULICS

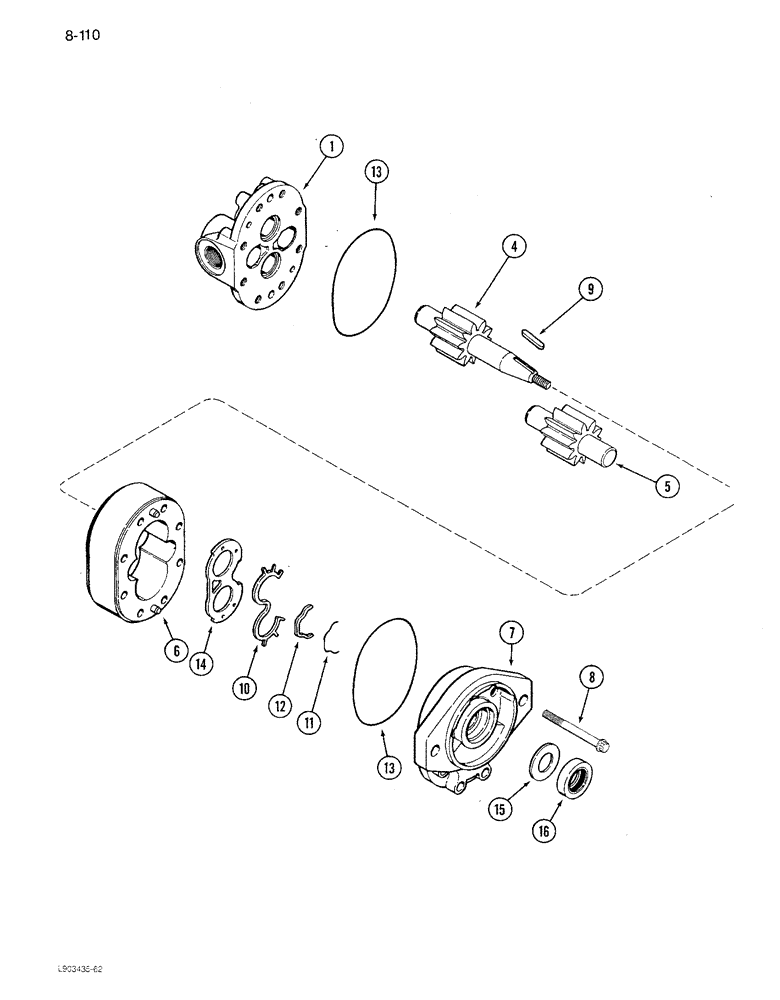

Схема запчастей Case IH 1680 - (8-110) - REEL DRIVE PUMP ASSEMBLY, P.I.N. JJC0046598 THROUGH JJC0117059 (07) - HYDRAULICS
7
13
6
1
8
4
11
13
15
9
12
10
5
16
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1341921C1

PUMP

ASSEMBLY - reel drive, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - rear

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - drive

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - idler

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - front

1шт.

8

166-34

12 PT SCREW,Flg, 5/16" - 18 x 3", Gr 8

BOLT - 12 point head, 5/16 NC x 3 inch, Grade 8

8шт.

9

H173963

BUCKET TOOTH KEY

KEY - pump shaft (Not Serviced Separately)

1шт.

1272638C2

SEAL KIT

SERVICE KIT - pump, Includes: Ref. 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET - backup

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - backup

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - body

2шт.

14

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.
