(8-138) - FEEDER CLUTCH CYLINDER ASSEMBLY

Запчасти Case IH 1680 (8-138) - FEEDER CLUTCH CYLINDER ASSEMBLY (07) - HYDRAULICS

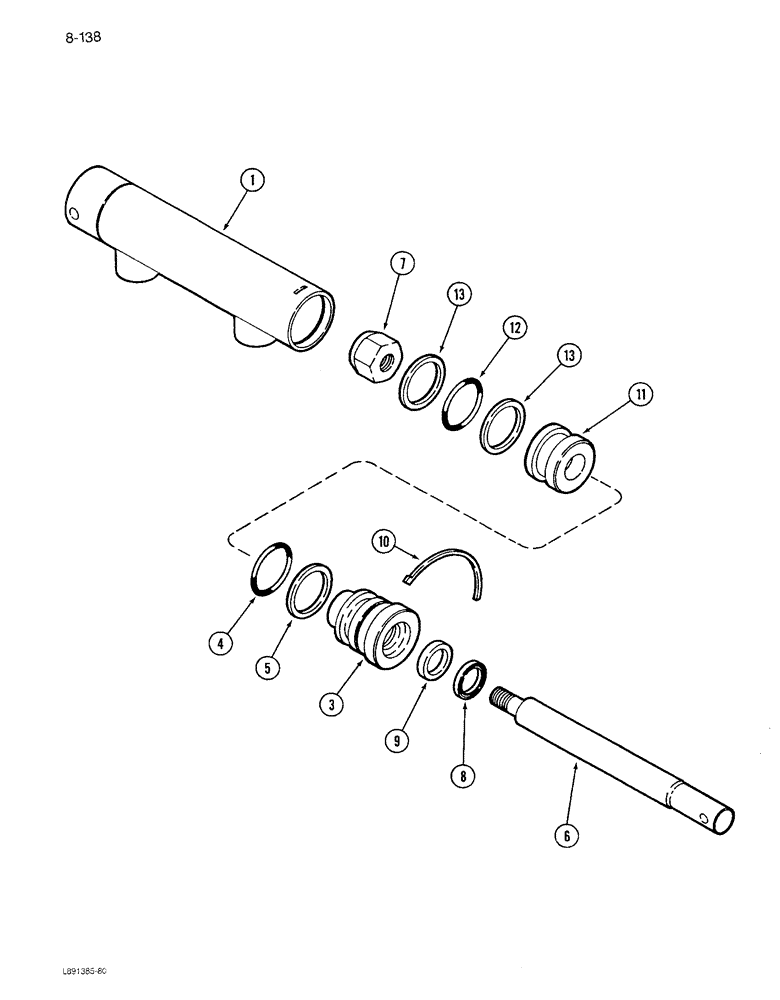

Схема запчастей Case IH 1680 - (8-138) - FEEDER CLUTCH CYLINDER ASSEMBLY (07) - HYDRAULICS
9
6
4
11
1
5
3
8
12
7
13
13
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

133405C92

CYLINDER

ASSEMBLY - hydraulic, feeder clutch, Includes: Ref. 1 - 13

1шт.

87337239R

REMAN-HYD CYLINDER

1680 CASE IH AXIAL-FLOW COMBINE (S/N JJC0045689 & AFTER) (NORTH AMERICA), PRIOR TO JJC0045689, Assembly hydraulic, feeder clutch (1/86-12/92), Reman for New PN 133405C92

1шт.

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder (Order 133405C92)

1шт.

3

108641C1

GLAND

HEAD - front

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, Class 6

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

1шт.

6

108639C1

PISTON ROD

ROD - piston

1шт.

7

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod seal

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston rod urethane

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

11

108640C2

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 inch, Class 6

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - o-ring backup

2шт.

63884C92

SEAL KIT

SERVICE KIT - cylinder (Includes: Ref. 4, 5, 8, 9, 10, 12 and 13

1шт.
