(8-150) - HYDRAULICS HOSES-FILTERS-AUXILIARY PUMP, HEADER LIFT & REEL DRIVE, P.I.N JJC0117060 & AFTER (CONTD)

Запчасти Case IH 1680 (8-150) - HYDRAULICS HOSES-FILTERS-AUXILIARY PUMP, HEADER LIFT & REEL DRIVE, P.I.N JJC0117060 & AFTER (CONTD) (07) - HYDRAULICS

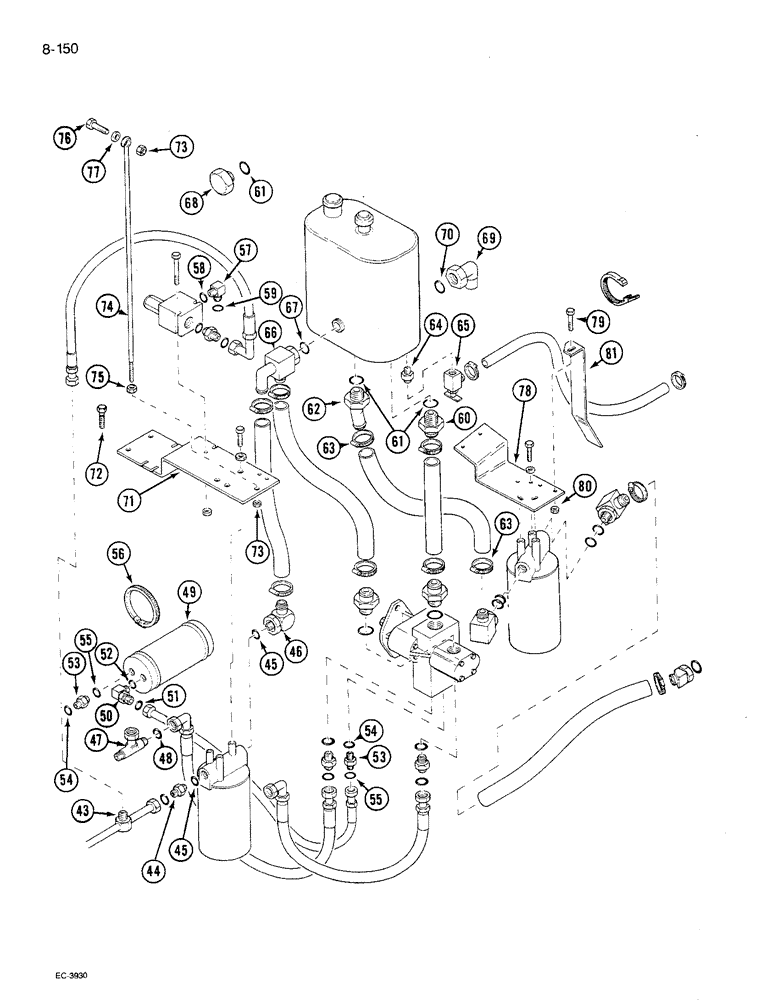

Схема запчастей Case IH 1680 - (8-150) - HYDRAULICS HOSES-FILTERS-AUXILIARY PUMP, HEADER LIFT & REEL DRIVE, P.I.N JJC0117060 & AFTER (CONTD) (07) - HYDRAULICS
45
61
65
64
63
68
71
76
62
46
43
49
53
77
51
79
80
78
72
59
58
60
57
56
53
69
55
70
73
73
66
61
52
67
50
81
45
47
44
48
75
54
63
54
74
55
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

43

1989284C2

HYD TUBE,1" OD

TUBE - valve stack return

1шт.

44

201-122

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

CONNECTOR - 1-1/4 x 1 inch Str

1шт.

45

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

2шт.

46

217-354

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW - 90 degree, 1-1/4 x 1 inch

1шт.

47

201-419

TEE,1 3/16"-12 ORFS x 1 3/16"-18 Sw Br

- 3/4 inch

1шт.

48

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

49

1994631C1

LIMITER, TRAVEL

ATTENUATOR - 0.7 LT

1шт.

50

1541627C1

ELBOW

- restrictor

1шт.

52

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

53

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

ADAPTER - straight, 13/16-16 face seal x 9/16-18 inch O-ring

1шт.

55

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

56

214-1552

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm, W/ Liner

CLAMP -

2шт.

57

201-358

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4 x 1/2 inch thread

1шт.

58

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

59

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

60

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

- stem, str, 1-1/4 x 1-1/4 inch

1шт.

61

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

3шт.

62

217-322

FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW - 45º, 1-1/4 x 1 inch

1шт.

63

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

CLAMP, HOSE, 1.25/2.125 HD Worm, W/liner

2шт.

64

175778H1

ADAPTER

- 1/2 to 3/8 inch pipe

1шт.

65

301803R1

SHUT-OFF VALVE

VALVE ASSEMBLY - reservoir drain

1шт.

66

1541642C1

TEE

- special, beaded tube

1шт.

67

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1 inch

1шт.

68

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- hex, 1-1/4 inch

1шт.

69

178995C1

ELBOW

- 90 degree, 3/4 x 1 inch

1шт.

70

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, 3/4 inch O.D.

1шт.

71

1989295C1

SUPPORT

BRACKET - return filter

1шт.

72

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, self-locking, 3/8 NC x 3/4 inch

2шт.

73

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

4шт.

74

1541544C2

STEM

ROD - filter bracket

1шт.

75

425-106

NUT,3/8"-16, Cl 5

1шт.

76

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

77

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

78

1979993C2

SUPPORT

BRACKET - charge pump filter

1шт.

79

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

4шт.

80

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

4шт.

81

1989389C1

SUPPORT

BRACKET -

1шт.

54

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD tube

1шт.

51

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
