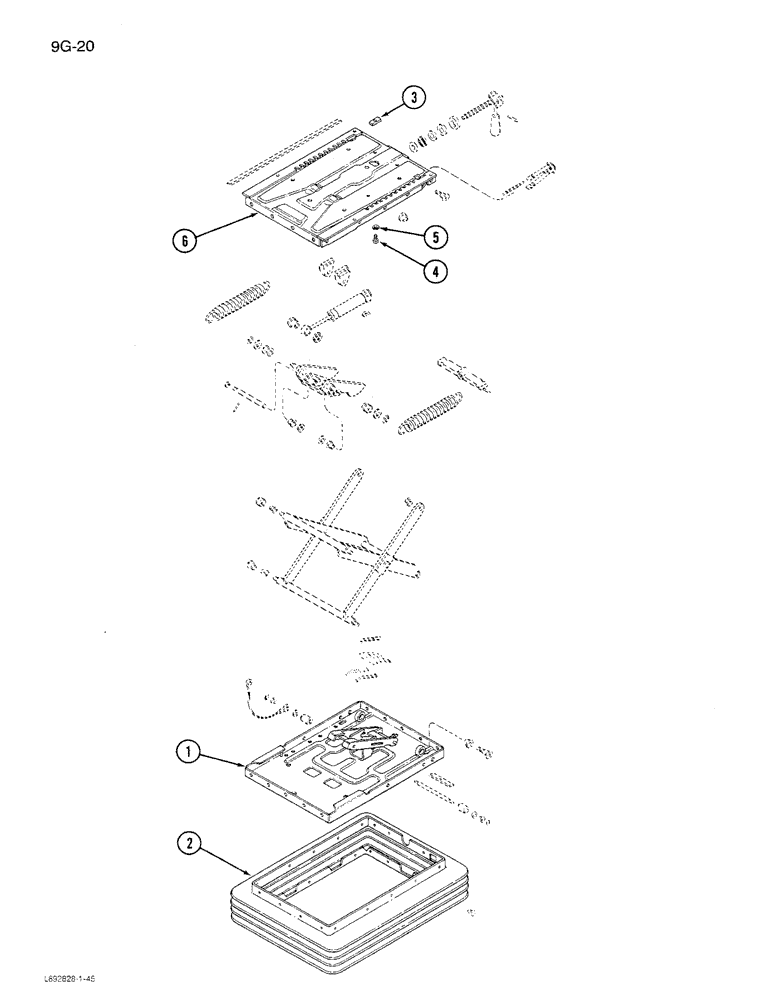

Запчасти Case IH 1680 (9G-20) - SEAT ASSEMBLY, SUSPENSION SLIDER, BOSTROM SEAT (10) - CAB & AIR CONDITIONING

91789C91

SEAT

ASSEMBLY - operator

1шт.

1954465C1

KIT

SERVICE KIT - suspension, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SUSPENSION - seat

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - suspension

1шт.

3

NSS

NOT SOLD SEPARAT

STOP - forward

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - stop retaining, 5 x 10 mm

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - lock, 5 mm

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDER - seat

2шт.

1954469C1

KIT

SERVICE KIT - top, seat (Includes: Ref. 6) (Includes Ref. on Figure 9G-??? and ???)

1шт.

1954471C1

KIT

SERVICE KIT - miscellaneous (Includes: Ref. 6) (Includes Ref. on Figure 9G-???, ??? and ???)

1шт.
