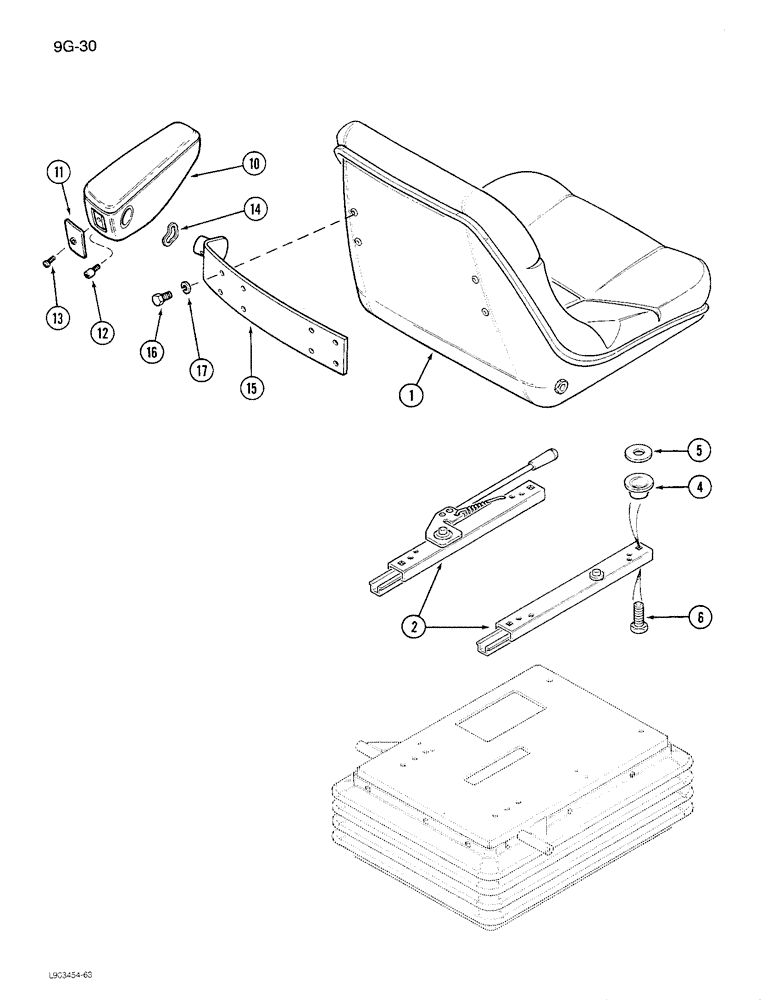

Запчасти Case IH 1680 (9G-30) - SEAT ASSEMBLY, MECHANICAL SUSPENSION, SEARS SEAT, PRIOR TO P.I.N. JJC0115001 (10) - CAB & AIR CONDITIONING

1340288C1

SEAT

ASSEMBLY - operators, mechanical suspension

1шт.

1

1990659C1

PACKAGE

SEAT KIT - top (Replaces 1344106C1), Includes: Ref. 2 - 17

1шт.

2

1981784C1

SET OF PARTS

SERVICE KIT - slide

1шт.

4

S115782

BUSHING

SPACER - slide cup

4шт.

5

1974732C1

WASHER

- flat

4шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch

4шт.

1344104C1

SET OF PARTS

ARMREST KIT - left, Includes: Ref. 10 - 17

1шт.

10

A45488

ARMREST

- seat, left

1шт.

11

A45583

PLATE

- cover, left armrest

1шт.

12

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest stop Hex Soc Hd, 1/4"-20 x 3/8"

1шт.

13

273-10510

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - self tapping, No. 10-16 x 5/8 inch

1шт.

14

A47352

WASHER

- wave, 1-1/8 inch ID

1шт.

15

1344105C1

SUPPORT

BRACKET - armrest

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

17

192-81000

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
