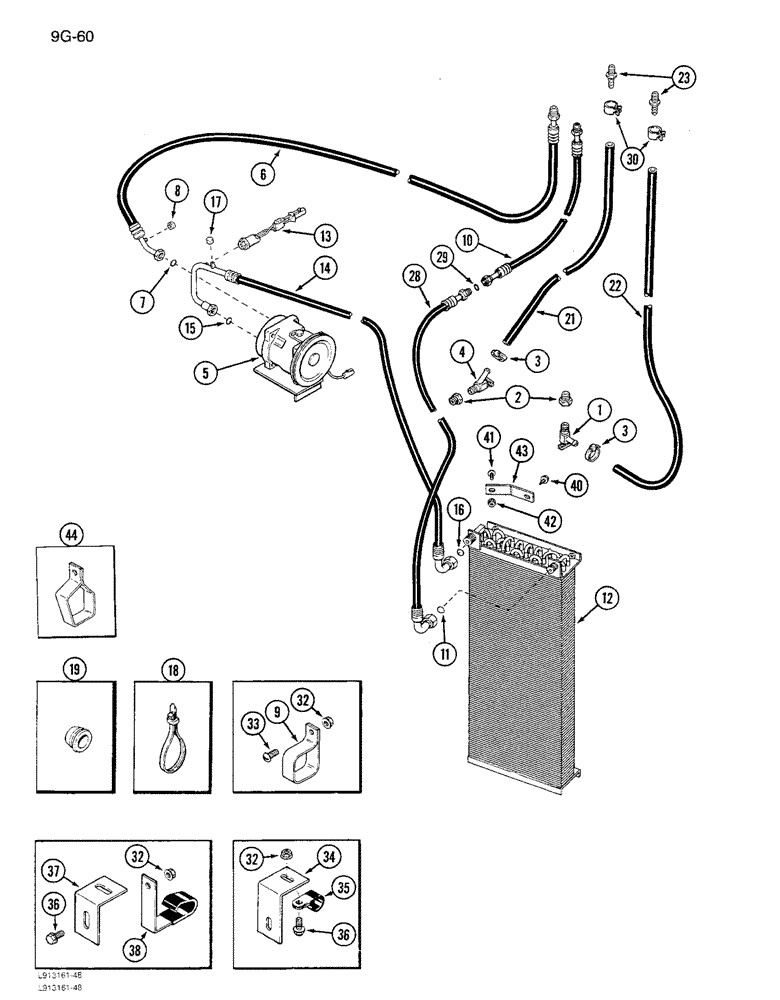

Запчасти Case IH 1680 (9G-60) - HEATER AND AIR CONDITIONER SYSTEM, COMBINE CHASSIS (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

VALVE - heater

1шт.

2

175778H1

ADAPTER

- 1/2 to 3/8 inch

2шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Spring #24

2шт.

4

941980R91

LOCK VALVE

VALVE - heater, 45 degree

1шт.

5

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air conditioner (See Figure 9G-66)

1шт.

6

98042C2

HOSE ASSY.

HOSE ASSEMBLY - compressor to cab, 4750 mm, Includes: Ref. 7 and 8

1шт.

7

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

8

118188C1

CAP

- seal

1шт.

9

154695C2

CLAMP

- hose (Heater only)

1шт.

9

1301387C2

CLIP

CLAMP - hose (Heater and air conditioner)

1шт.

10

1321292C4

HOSE

- condenser to cab, 4743 mm (Replaces 1321292C3), Includes: Ref. 11

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

12

84581C1

CONDENSER

COIL - condenser, air conditioner

1шт.

13

92038C1

SWITCH, A/C HIGH PRE

SWITCH - air conditioning, high pressure

1шт.

14

98043C2

HOSE ASSY.

HOSE ASSEMBLY - compressor to condenser, 1800 mm, Includes: Ref. 15 - 17

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

16

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

17

118188C1

CAP

- seal

2шт.

18

306132C1

CABLE TIE,14.5" L

STRAP - tie, 4 inch maximum bundle

1шт.

18

702093C1

CABLE TIE

STRAP - tie, 3 inch maximum

1шт.

19

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- hose, 5/8 inch

3шт.

19

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hose, 3/4 inch ID

3шт.

19

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

- heater hose, 7/8 inch ID

2шт.

19

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

- hose, 1 inch ID

2шт.

21

NSS

NOT SOLD SEPARAT

HOSE - heater, 255 inch (Order R54970 and, Serial Range: cut-length)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater, 358 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

Bulk hose 97252CX is only 300" long, so can't cut 358" from it. Part# 1979229C1 has been reinstated as a precut 358" hose. 2

1шт.

23

1301342C1

FITTING

CONNECTOR - heater hose inlet fitting

2шт.

28

98045C2

HOSE ASSY.

HOSE ASSEMBLY - condenser to cab, 1560 mm, Includes: Ref. 29

1шт.

29

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

30

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Spring #24

2шт.

32

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

34

194756C2

ANGLE

- clamp mounting front

1шт.

35

28123R1

CLAMP

- 1-1/2 inch coated medium, closed

1шт.

36

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

2шт.

37

1301560C1

SUPPORT

ANGLE - clamp mounting rear

1шт.

38

1324905C1

CLIP

- air conditioner, Serial Range: hoses-condenser

1шт.

40

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

41

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

2шт.

42

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

43

1324915C2

SUPPORT

BRACKET - condenser support

2шт.

44

1347292C2

CLAMP

- hose, heater and air conditioner

1шт.
