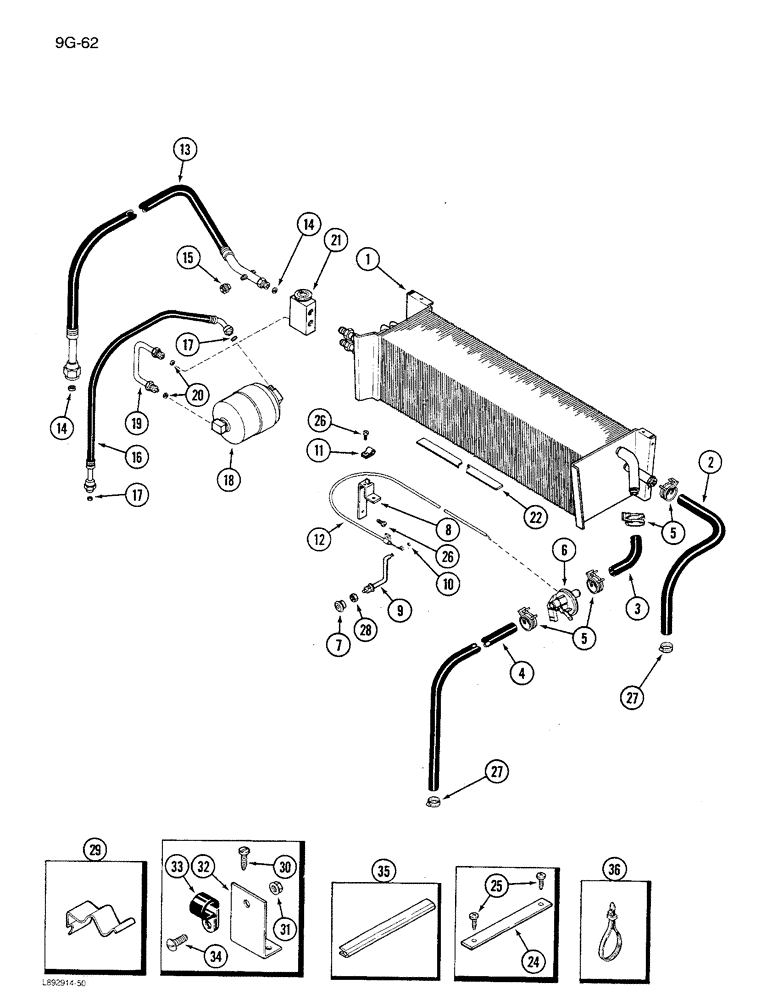

Запчасти Case IH 1680 (9G-62) - HEATER AND AIR CONDITONER SYSTEM, CAB (10) - CAB & AIR CONDITIONING

1

REF

INSTRUCTION

CORE ASSEMBLY - evaporator (With expansion valve) (See Figure 9G-56)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - heater to chassis junction, 130 inch (Order R54970 and, Serial Range: cut-length)

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - heater to valve (Return) 5 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - heater to valve to chassis junction (Return) 115 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

5

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Spring #24

4шт.

6

3234102R92

VALVE

- heater control, Start Serial: JJC0047025

1шт.

6

1331087C1

HEATER VALVE

VALVE - heater control, Serial Range: -JJC0047025

1шт.

7

111282C1

KNOB

- heater control

1шт.

8

1989808C1

SUPPORT

- cable, heater valve control (Replaces 1283445C3)

1шт.

9

1989809C1

ARM

LEVER - heater control (Replaces 1281809C1)

1шт.

10

379310R1

SNAP RING,#25, .207" Dia, E-Type

Ring, Retaining, #25, .207" Dia, E-Type

2шт.

11

1283334C1

CLIP

- mounting, heater cable (If equipped)

1шт.

12

1989810C1

CABLE

- control, heater valve (Replaces 1343953C1)

1шт.

13

1276164C1

HOSE

ASSEMBLY - evaporator discharge, Includes: Ref. 14 and 15

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

15

118188C1

CAP

- seal

1шт.

16

1276163C2

HOSE

ASSEMBLY - receiver-drier to cab, Includes: Ref. 17

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

18

REF

INSTRUCTION

RECEIVER-DRIER - (See Figure 9G-56)

1шт.

19

1250438C1

TUBE ASSY.

TUBE ASSEMBLY - receiver-drier, Includes: Ref. 20

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

21

REF

INSTRUCTION

VALVE - expansion (See Figure 9G-56)

1шт.

22

NSS

NOT SOLD SEPARAT

TAPE - insulation, 96 inch (Order bulk 118468C1 and cut)

1шт.

24

1321363C2

STRAP

- retaining, hose

2шт.

25

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

4шт.

26

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

3шт.

27

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose No. 12 Type F

2шт.

28

109311H

JAM NUT

- thin hex, 7/16 inch NF, heater control arm

1шт.

29

3233746R1

CLIP

- cable, Start Serial: JJC0047025

1шт.

29

1954626C1

SPRING CLIP

CLIP - spring, cable retainer, Serial Range: -JJC0047025

1шт.

30

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.

31

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

32

98158C1

BRACKET

- heater valve support

1шт.

33

27291R1

CLAMP

- 1 inch diameter closed

1шт.

34

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - hose, 3 inch (Order 196707C1)

1шт.

36

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

1шт.
