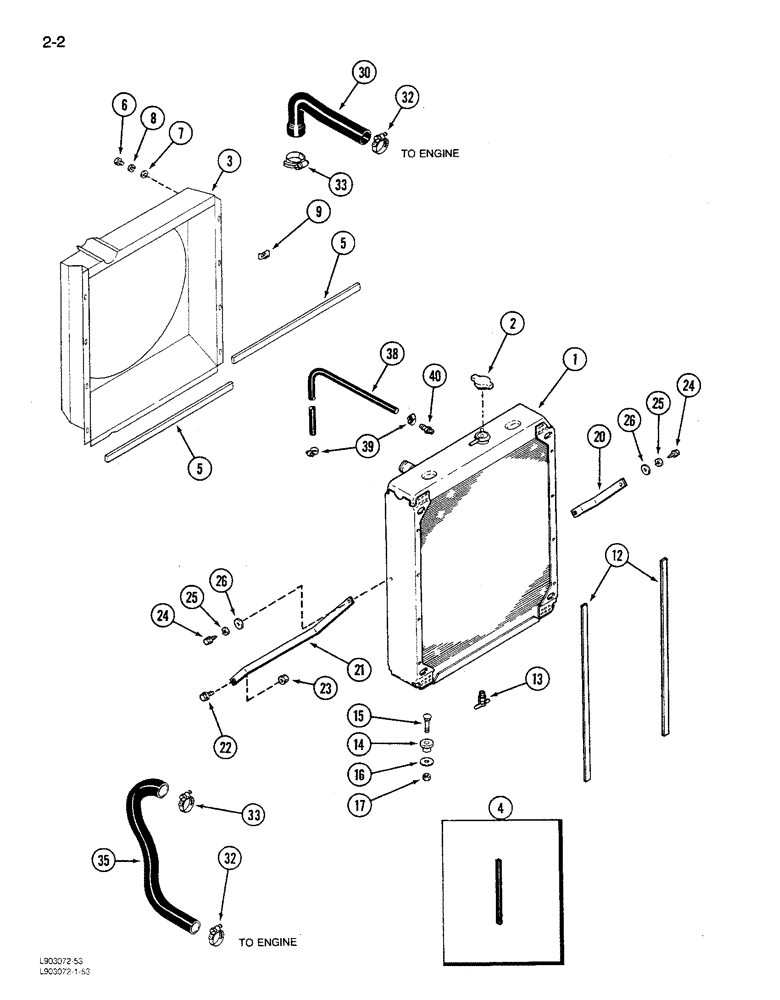

Запчасти Case IH 1680 (2-002) - RADIATOR AND FAN SHROUD (01) - ENGINE

1

A189067

RADIATOR

ASSEMBLY - cooling system (Grain and Corn), Includes: Ref. 2

1шт.

1

A189470

RADIATOR

- cooling system (Rice Only), Includes: Ref. 2

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

1347158C1

ORIFICE RING

SHROUD - fan

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - radiator, 12-5/16 inch (Order 196707C1 and, Serial Range: cut-length)

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - radiator to shroud, 787 mm (Order 1319664C3 and, Serial Range: cut-length)

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - radiator to lower shroud, 730 mm (Order 1319664C3 and, Serial Range: cut-length)

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

7

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch

8шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

9

131-636

SPRING NUT,J, Ret, 5/16"-18

- hex lock, 5/16 inch NC

8шт.

12

NSS

NOT SOLD SEPARAT

SEAL - radiator to air chute, 875 mm (Order 195917C2 and, Serial Range: cut-length)

1шт.

13

86982771

VALVE

ASSEMBLY - drain, 1/4 inch PT

1шт.

14

R29799

SHOCK ABSORBER

ABSORBER - vibration, radiator

2шт.

15

434-736

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

BOLT - round head square neck, 7/16 NC x 2-1/4 inch

2шт.

16

23043R1

WASHER

- flat, 15/32 x 1-3/4 x 7/64 inch

4шт.

17

131-667

NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

2шт.

20

1330426C1

BAR

SUPPORT - radiator, right

1шт.

21

1347185C1

SUPPORT

- radiator, left

1шт.

22

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

23

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

24

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/64 inch

2шт.

30

84549C1

HOSE

Engine Outlet

1шт.

32

214-176

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

hose retaining 1.25/2.625 HD Worm

2шт.

33

1979481C1

HOSE CLAMP,2.25/3.125 HD Worm, W/liner

CLAMP - hose retaining

2шт.

35

1979382C1

LARGE HOSE

HOSE - engine inlet

1шт.

38

100393A1

RADIATOR HOSE,660.00 mm

Vent, Radiator to Engine 660.00 mm

1шт.

39

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - adjustable, includes screw, No. 6, type F

2шт.

40

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Connector - straight, barb end 3/8" Hose X 1/4" NPTF Beaded

1шт.
