(7-016) - MASTER BRAKE CYLINDER ASSEMBLY

Запчасти Case IH 1680 (7-016) - MASTER BRAKE CYLINDER ASSEMBLY (5.1) - BRAKES

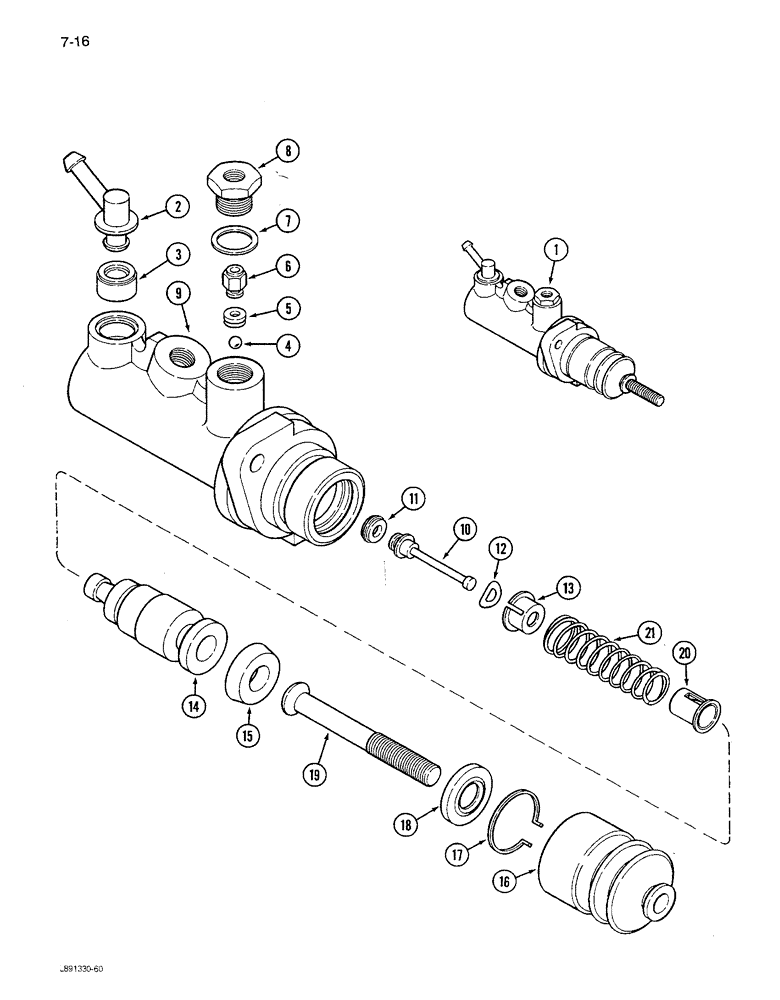

Схема запчастей Case IH 1680 - (7-016) - MASTER BRAKE CYLINDER ASSEMBLY (5.1) - BRAKES
6
4
13
18
19
20
8
9
21
12
17
15
16
5
1
7
11
3
14
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1281884C91

MASTER CYLINDER,37mm Stroke

ASSEMBLY - master brake, Includes: Ref. 4 - 21 and P/N 85108C1

1шт.

85108C1

SEAL KIT

SEAL AND CONNECTOR KIT - inlet port, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR - port, inlet

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - adapter

1шт.

4

NSS

NOT SOLD SEPARAT

BALL - valve

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - flow valve

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - flow

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - adapter

1шт.

8

NSS

NOT SOLD SEPARAT

ADAPTER - flow valve

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - brake

1шт.

10

NSS

NOT SOLD SEPARAT

STEM - valve

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - center valve

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - curved

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER - valve

1шт.

14

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

16

85109C1

BELLOWS

BOOT - master brake cylinder

1шт.

17

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - retaining

1шт.

19

NSS

NOT SOLD SEPARAT

ROD - push

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

1288941C91

PACKAGE, REPAIR

REPAIR KIT - cylinder (Includes: Ref. 3, 4, 5, 7, 11, 12, 15, 16 and 17)

1шт.
