(2-036) - OIL FILTER AND COOLER, 6TA-830 ENGINE, PRIOR TO ENGINE SERIAL NUMBER 44500595

Запчасти Case IH 1680 (2-036) - OIL FILTER AND COOLER, 6TA-830 ENGINE, PRIOR TO ENGINE SERIAL NUMBER 44500595 (01) - ENGINE

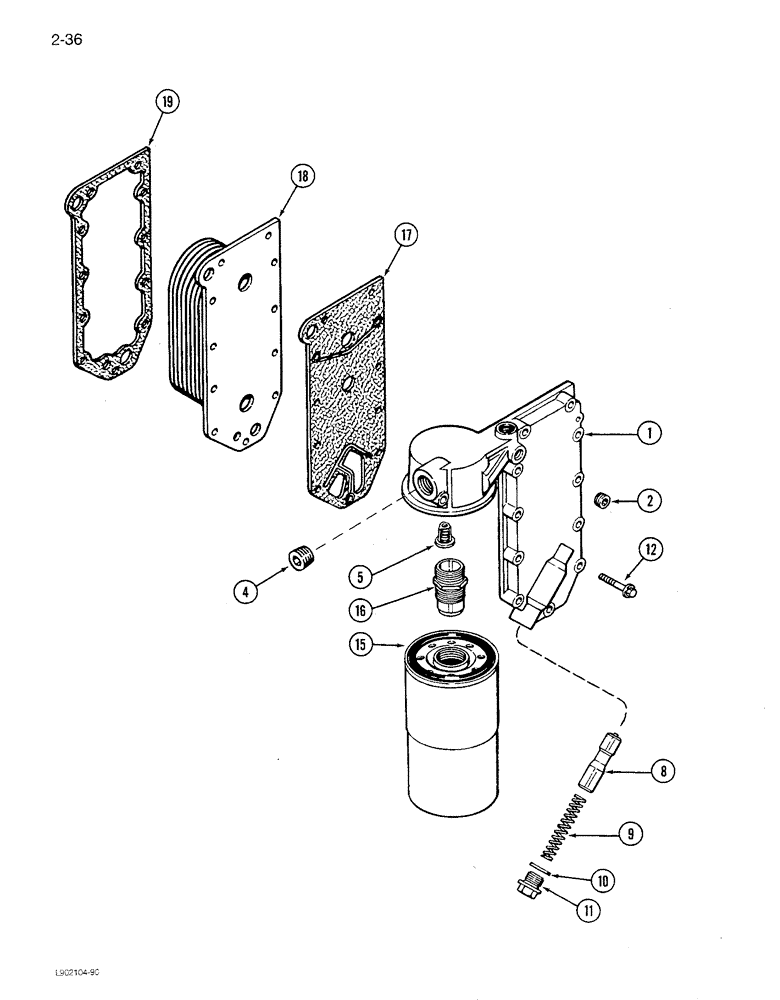

Схема запчастей Case IH 1680 - (2-036) - OIL FILTER AND COOLER, 6TA-830 ENGINE, PRIOR TO ENGINE SERIAL NUMBER 44500595 (01) - ENGINE
4
8
16
19
5
15
11
2
18
12
9
10
17
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J907831

HEAD

- filter and cooler

1шт.

2

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

1шт.

4

A77505

PLUG

- hex socket pipe, 3/4-14 inch PT

1шт.

5

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

8

A77540

PLUNGER

- regulator

1шт.

9

A77541

SPRING

- compression

1шт.

10

J901798

SEALING WASHER

WASHER - sealing

1шт.

11

J906299

PLUG

- regulator

1шт.

12

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 45 mm, 8.8

11шт.

15

A77537

ENGINE OIL FILTER

FILTER - oil (Cartridge)

1шт.

16

A77542

ADAPTER

- filter

1шт.

17

J914308

GASKET

- head, filter

1шт.

18

J918175

CORE, RADIATOR

CORE - cooler, oil

1шт.

19

J918174

GASKET,0.71mm Thk

- cooler core

1шт.
