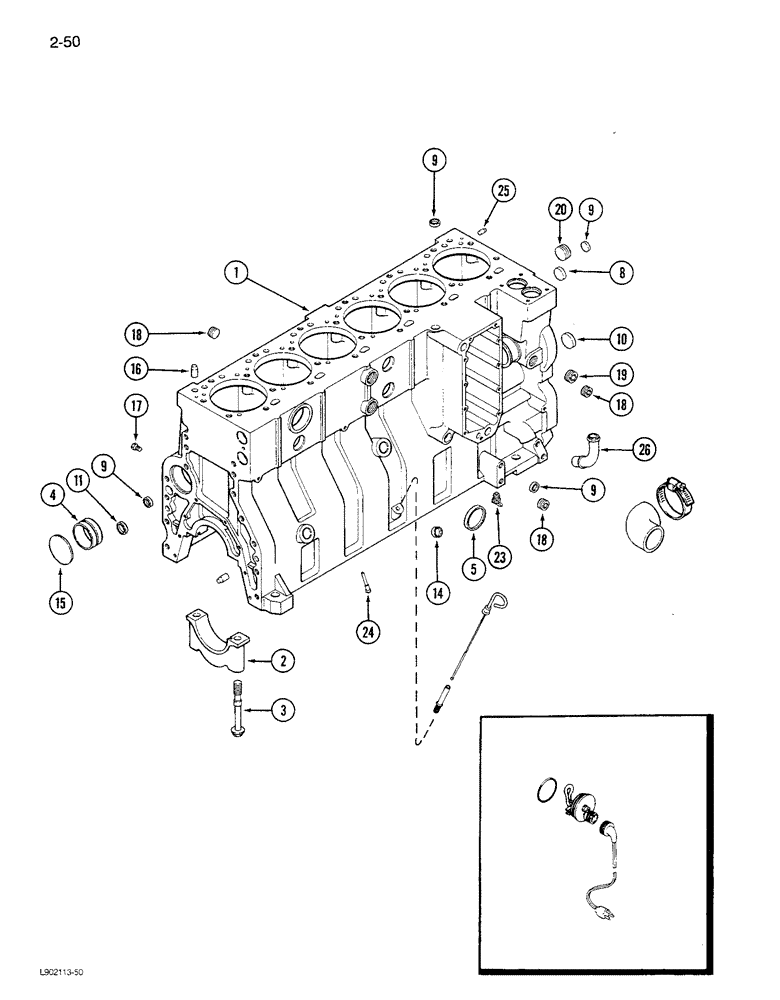

Запчасти Case IH 1680 (2-050) - CYLINDER BLOCK, 6TA-830 ENGINE, SIX PISTON COOLING NOZZLES (01) - ENGINE

A174327

ENGINE ASSEMBLY

- complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

JR913779

ENGINE, EXCHANGE

BLOCK ASSEMBLY - short, engine remanufactured (North America Only), Includes: Ref. 2 - 10

1шт.

JC913779

SKELETON ENGINE

RETURN NUMBER - engine short block (Use this part number to return block core for credit), Includes: Ref. 2 - 10

1шт.

J913779

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine (New) (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Also Order J909415 kit), Includes: Ref. 1, Includes: Ref. 2 - 10

1шт.

1

JR911898

ENGINE, EXCHANGE

BLOCK ASSEMBLY - cylinder, stripped, remanufactured (North America Only, Includes: Ref. 2 - 10

1шт.

1

JC911898

SKELETON ENGINE

RETURN NUMBER - Use this part number when returning stripped block core for credit, Includes: Ref. 2 - 10

1шт.

1

J911898

BASIC BLOCK

BLOCK ASSEMBLY - cylinder, stripped, new (Also Order J909415 kit), Includes: Ref. 2 - 10

1шт.

2

J905397

CAP

- bearing, main

7шт.

3

J906655

BOLT,Flng, M14 x 2 x 128.5mm, Cl 12.9

- hex flange, 14 mm - 2.0 x 128 mm

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft (See Figure 2-48)

7шт.

5

J900965

PLUG

- expansion cup, 58 mm OD

1шт.

8

A77586

PLUG

- cup, 28.9mm OD

1шт.

9

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

- expansion, 35 mm OD

4шт.

J900955

PLUG

- expansion

1шт.

J909415

KIT

HARDWARE KIT - block, Includes: Ref. 11 - 25

1шт.

11

A77530

PLUG

- expansion, 1-3/16 inch OD

2шт.

14

A77439

PLUG

- expansion, 22 mm OD

1шт.

15

J901969

PLUG

- expansion, 69 mm OD

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

- dowel

4шт.

17

J906619

PLUG,1/8" - 27

- hex pipe, 1/8 inch PT

6шт.

18

A77429

PLUG

- hex socket head, 1/2 inch PT

4шт.

19

A77505

PLUG

- hex pipe, 3/4 inch PT

1шт.

20

A77533

PLUG

- hex pipe, 1 inch PT

1шт.

23

A77425

DRAIN VALVE

VALVE - drain, coolant

1шт.

24

J905928

NOZZLE INJECTION

NOZZLE - cooling, piston

6шт.

25

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm

2шт.

26

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, oil

1шт.
