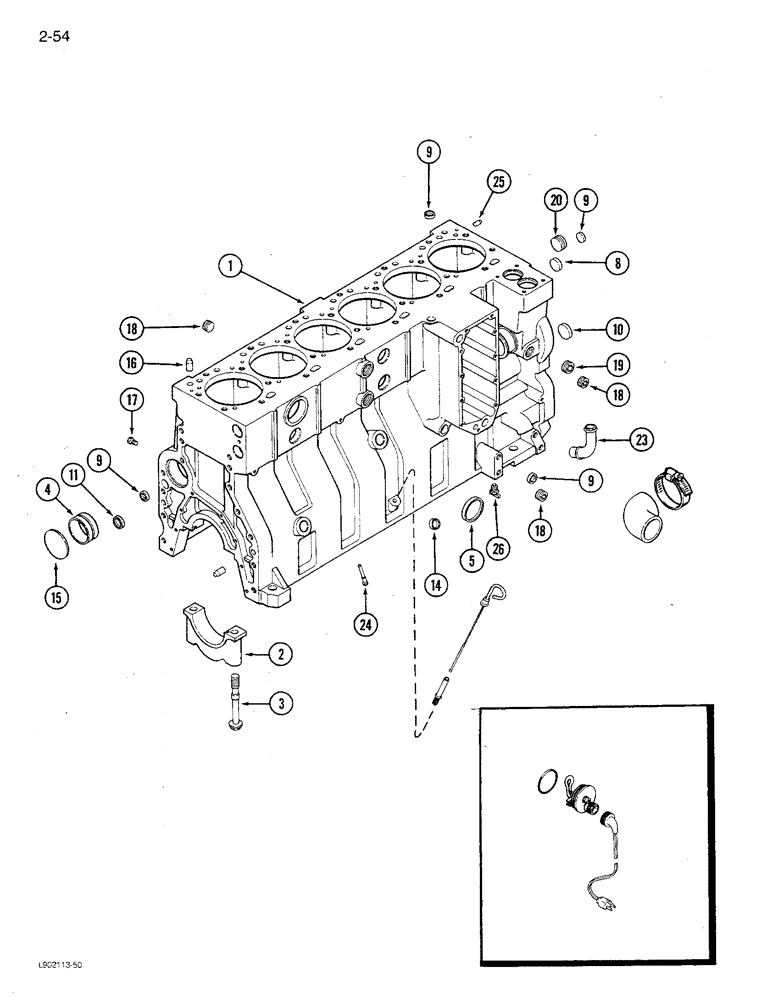

Запчасти Case IH 1680 (2-054) - CYLINDER BLOCK, 6TA-830 ENGINE, 12 PISTON COOLING NOZZLES, BEFORE ENGINE SERIAL NO. 44487830 (01) - ENGINE

1989016C2

ENGINE ASSEMBLY

- complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

AR174359

ENGINE, EXCHANGE

ENGINE ASSEMBLY - remanufactured (North America only)

1шт.

AC174359

CORE-ENGINE

RETURN NUMBER - (Use this part number to return engine assembly core for credit)

1шт.

A174359

BASIC ENGINE

ENGINE ASSEMBLY - basic

1шт.

ENGINE ASSEMBLY - basic, new (Includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner, turbocharger and aftercooler)

1шт.

JR919557

SKELETON ENGINE

BLOCK ASSEMBLY - short, remanufactured (North America Only), Includes: Ref. 2 - 10

1шт.

JC919557

CORE-ENGINE

RETURN NUMBER - engine, short block (Use this number when returning short block for credit), Includes: Ref. 2 - 10

1шт.

J919557

SKELETON ENGINE

BLOCK ASSEMBLY - short, new (Includes stripped block, pistons, connecting rods and bearings, crankshaft and and bearings) (Also order A77716 kit), Includes: Ref. 1, Includes: Ref. 2 - 10

1шт.

1

JR919374

CRANKCASE

BLOCK ASSEMBLY - stripped, remanufactured (North America Only), Includes: Ref. 2 - 10

1шт.

1

JC919374

CORE-ENGINE

RETURN NUMBER - stripped block (Use this number when returning block core for credit), Includes: Ref. 2 - 10

1шт.

1

J919374

BLOCK

ASSEMBLY - cylinder, stripped (Also order A77716 kit), Includes: Ref. 2 - 10

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, Hex Flg Hd, M14 x 128

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft, (See Figure 2-48)

7шт.

5

J900965

PLUG

- expansion, 58 mm OD

1шт.

8

A77586

PLUG

- expansion, 28.9 OD

1шт.

9

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

- expansion, 35 mm OD

4шт.

A77716

BLOCK

HARDWARE KIT - block, Includes: Ref. 11 - 26

1шт.

11

A77530

PLUG

- expansion, 1-3/16 inch OD

2шт.

14

A77439

PLUG

- expansion, 22 mm OD

1шт.

15

J901969

PLUG

- expansion, 69 mm OD

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

- dowel

4шт.

17

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

6шт.

18

A77429

PLUG

- hex socket pipe, 1/2-18 inch PT

4шт.

19

A77505

PLUG

- hex socket pipe, 3/4-14 inch PT

2шт.

20

A77533

PLUG

- hex pipe, 1 inch PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, oil

1шт.

24

J919003

NOZZLE INJECTION

NOZZLE - piston cooling

12шт.

25

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

26

A77425

DRAIN VALVE

VALVE - drain, coolant

1шт.
