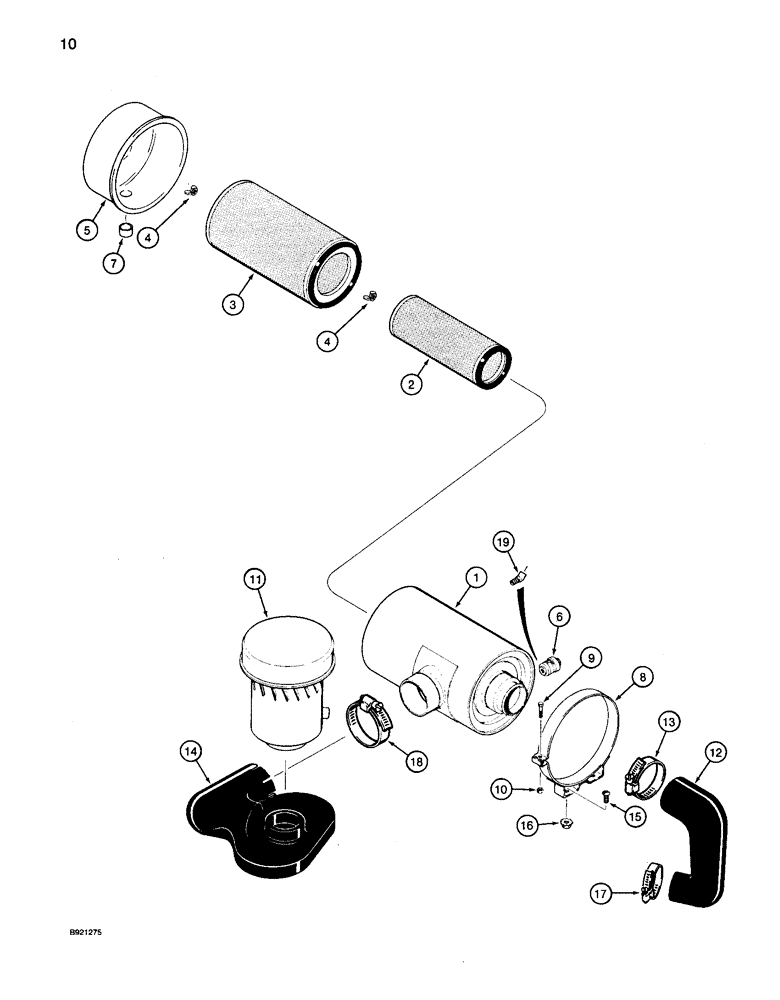

Запчасти Case IH 1680 (010) - AIR CLEANER (10) - ENGINE

1347832C2

AIR CLEANER

CLEANER ASSEMBLY - air, engine

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

627976C1

AIR FILTER

ELEMENT - secondary (includes gasket)

1шт.

3

627975C2

ELEMENT

- primary (includes gasket)

1шт.

4

412078C1

WING NUT

NUT - wing, element retainer, includes gasket

2шт.

5

1347839C1

COVER

- air cleaner, includes wing nut and sleeve

1шт.

6

1541610C1

INDICATOR

- air restriction

1шт.

7

353-174

PLUG

- cover, aspiration outlet

1шт.

8

1541871C1

CLAMP

BAND - air cleaner mounting, includes hardware, air induction system

2шт.

9

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Air induction system Hex, 5/16"-18 x 2", G5

2шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Air induction system

2шт.

11

1275728C2

PRECLEANER

- air induction, includes clamp and hardware, air induction system

1шт.

12

1541862C1

LARGE HOSE

HOSE - turbo inlet, air induction system

1шт.

13

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Air cleaner outlet, Air induction system 6.25/7.125 HD Worm, W/liner

1шт.

14

1541943C1

TUBE

PLENUM - air cleaner inlet, air induction system

1шт.

15

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - slotted truss head, 3/8 NC x 1 inch, air induction system

4шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

BOLT - hex flange, self-locking, 3/8 inch NC, air induction system

4шт.

17

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Turbocharger Inlet, Air Induction System 4.25/5.125 HD Worm, W/liner

1шт.

18

214-32112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Plenum to air cleaner inlet, Air induction system 6.25/7.125 HD Worm, W/liner

1шт.

19

9409927

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

- 45 degree, 1/8 inch PT, brass, air induction system

1шт.
