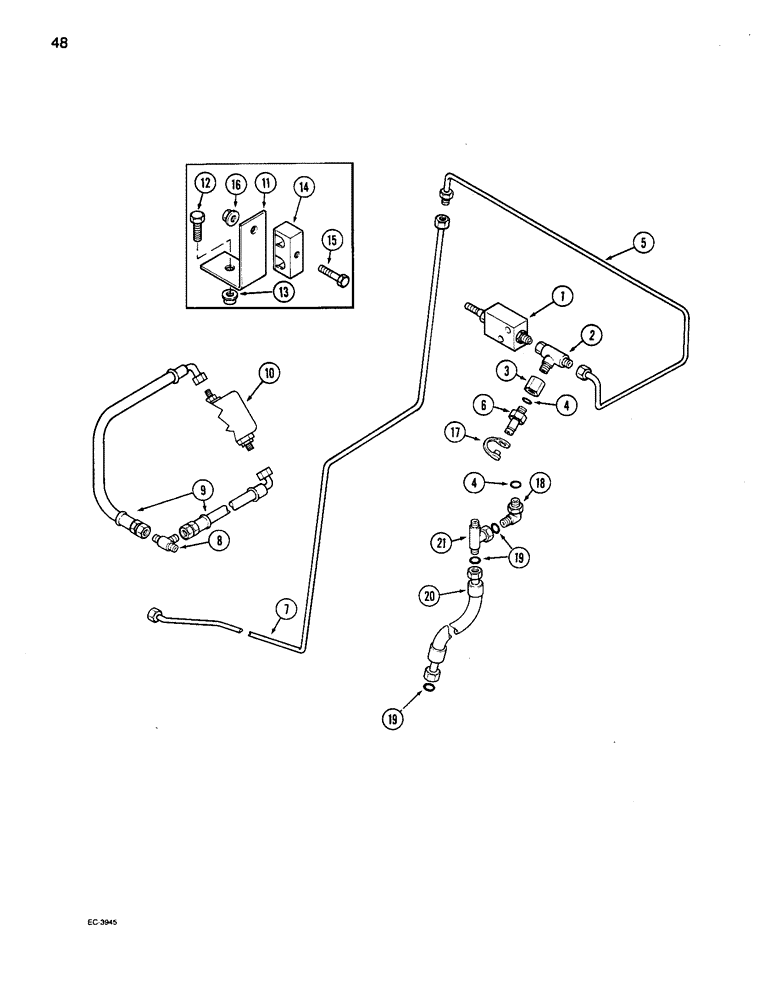

Запчасти Case IH 1680 (048) - FOOT-N-INCH VALVE SYSTEM (29) - HYDROSTATIC DRIVE

1

REF

INSTRUCTION

VALVE ASSEMBLY - Foot-N-Inch, see page 51 for correct valve

1шт.

2

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- 7/16-20 inch flare branch x fl x adj straight thread

1шт.

3

1541796C1

FITTING

CONNECTOR - 7/16-20 flare x 9/16-18 inch O-ring

1шт.

5

1541794C1

HYD TUBE

TUBE - upper

1шт.

6

1541849C1

COUPLING

COUPLER - diagnostic

1шт.

7

1327828C1

HYD TUBE

TUBE - lower

1шт.

8

218-591

TEE,7/16"-20, 37 Degree

- 7/16-20 inch flare

1шт.

9

175760C1

HOSE ASSY.

HOSE - 10 inch long

2шт.

10

REF

INSTRUCTION

MOTOR ASSEMBLY - (see page 43 - 47 or 6-69 - 6-77 for correct motor)

1шт.

11

178950C1

ANGLE

SUPPORT - tube

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, self-locking, 3/8 inch NC

1шт.

14

183820C1

CLAMP

- tube

1шт.

15

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

16

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, self-locking, 1/4 inch NC

1шт.

17

H434163

DUST CAP

CAP - coupler dust

1шт.

18

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90º, 13/16-16 face x 9/16-18 inch Adj O-ring

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

20

1989506C1

HOSE

- Foot-N-Inch

1шт.

21

201-411

TEE,13/16"-16 ORFS x 13/16"-16 Sw Br

- 13/16-16 inch swivel face branch x face x face

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

2шт.
