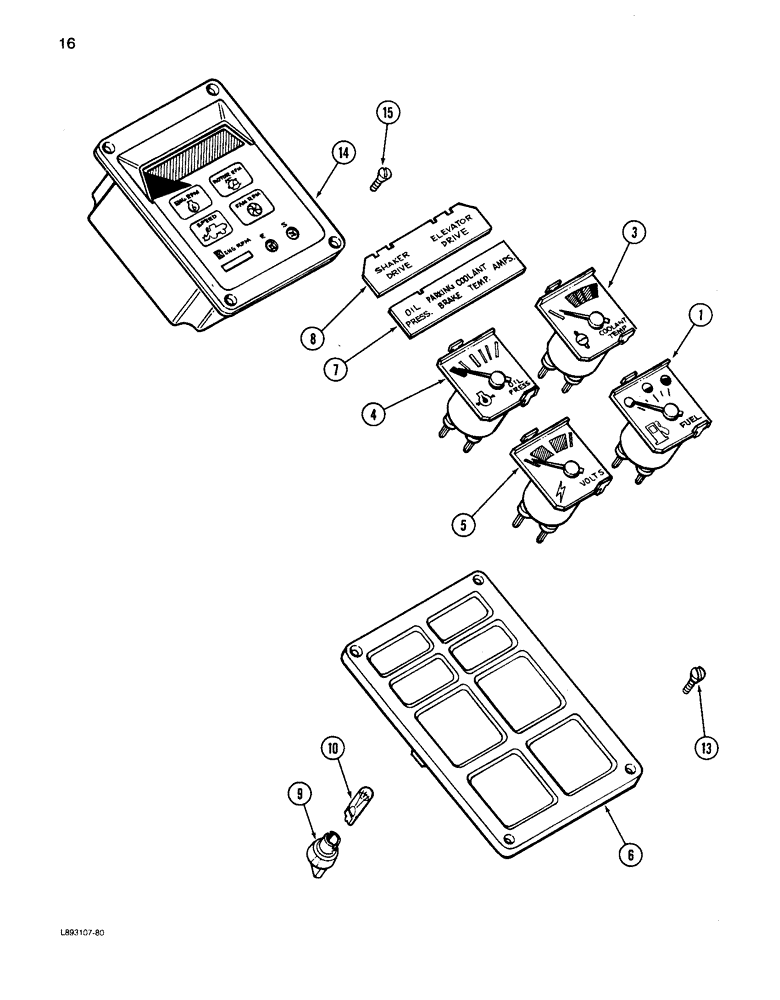

Запчасти Case IH 1680 (016) - INSTRUMENT CLUSTER AND TACHOMETER (55) - ELECTRICAL SYSTEMS

1983246C1

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instrument gauges

1шт.

1

121604C1

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

3

121605C2

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

4

121606C1

ELECTRICAL GAUGE

GAUGE - oil pressure

1шт.

5

121607C1

METER

GAUGE - voltmeter

1шт.

6

121608C1

GASKET

COVER - bezel and gasket

1шт.

7

187597C1

LENS

- oil pressure, brake, temperature and amperes

1шт.

8

1979357C1

LENS

- warning lamp, shaker and elevator, coolant level

1шт.

9

121611C1

SOCKET

- lamp

8шт.

10

20627R1

BULB,C2F, #194, 14V

- lamp, No. 194

8шт.

13

27204R1

SELF-TAP SCREW

- oval head, No. 10-16 x 3/4 inch

4шт.

1935114C1

ELECTRICAL GAUGE

TACHOMETER - engine, remanufactured, North America only

1шт.

1935113C1

CORE

RETURN NUMBER - tachometer, use this part number to return core for credit, when using a remanufactured assembly

1шт.

14

1987322C2

TACHOMETER

- engine

1шт.

15

265-13512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval head, No. 10-16 x 3/4 inch

4шт.
