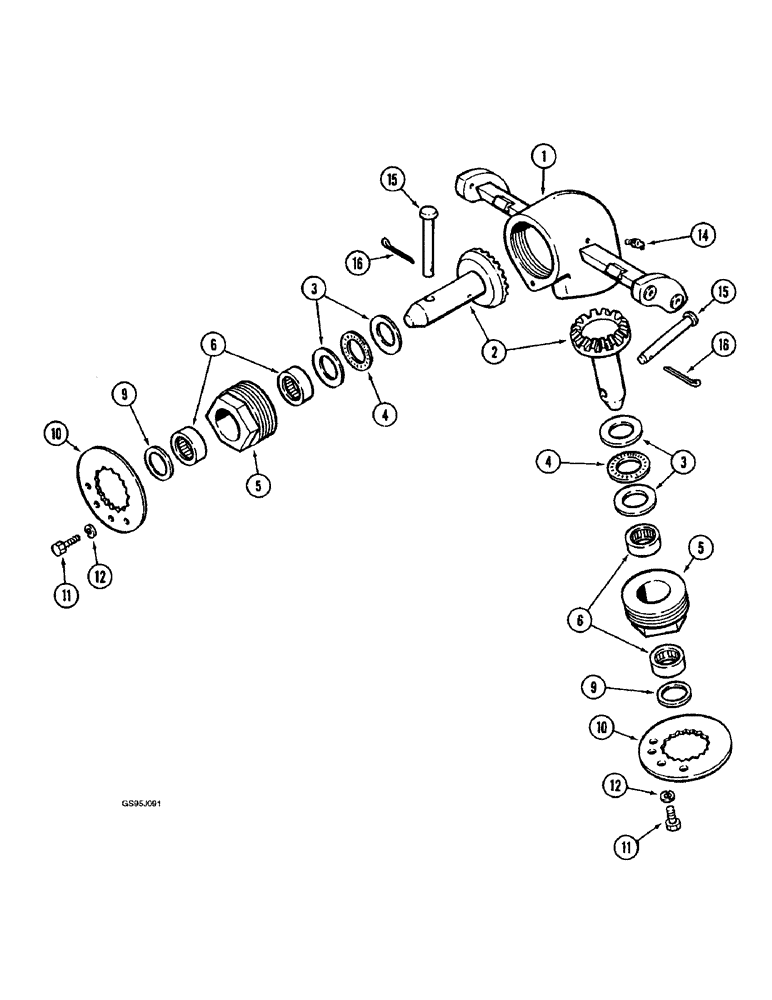

Запчасти Case IH 1682 (9-128) - 1324931C91 UNLOADER UPPER GEAR HOUSING (09) - CHASSIS ATTACHMENTS

1324931C91

HOUSING

ASSEMBLY - upper gear, unloader, no longer used, replaced by housing assembly 1347351C1, parts list Figure 9-129A, Includes: Ref. 1 - 16

1шт.

1324931C91R

REMAN-GEARBOX

1682 UNLOADER UPPER GEAR HOUSING

1шт.

1324931C91C

CORE-GEARBOX

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

2

1324929C1

GEAR

- unloader, bevel

2шт.

3

60714R1

WASHER - thrust

4шт.

4

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

- thrust, gear

2шт.

5

178135C91

BEARING HOUSING,1.6255" ID x 1.75"

HOUSING ASSEMBLY - bearing, Includes: Ref. 6 & 9

2шт.

6

D66348

NEEDLE BEARING,Needle, 34.92mm ID x 41.27mm OD x 12.7mm W

BEARING - housing, gear

4шт.

9

179014C91

OIL SEAL

- oil

2шт.

10

178138C1

RETAINER

- gear housing, bearing

2шт.

11

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch (Replaces bolt 180075)

2шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

15

1327766C2

PIN,12.7mm OD x 88.9mm L

- unloader gear, auger (Replaces pin 1327766C1)

2шт.

16

132-1216

COTTER PIN,3/16" x 1", Stainless

Pin, Split (Cotter), (Replaces pin 28346R1) 3/16" x 1", Stainless

2шт.
