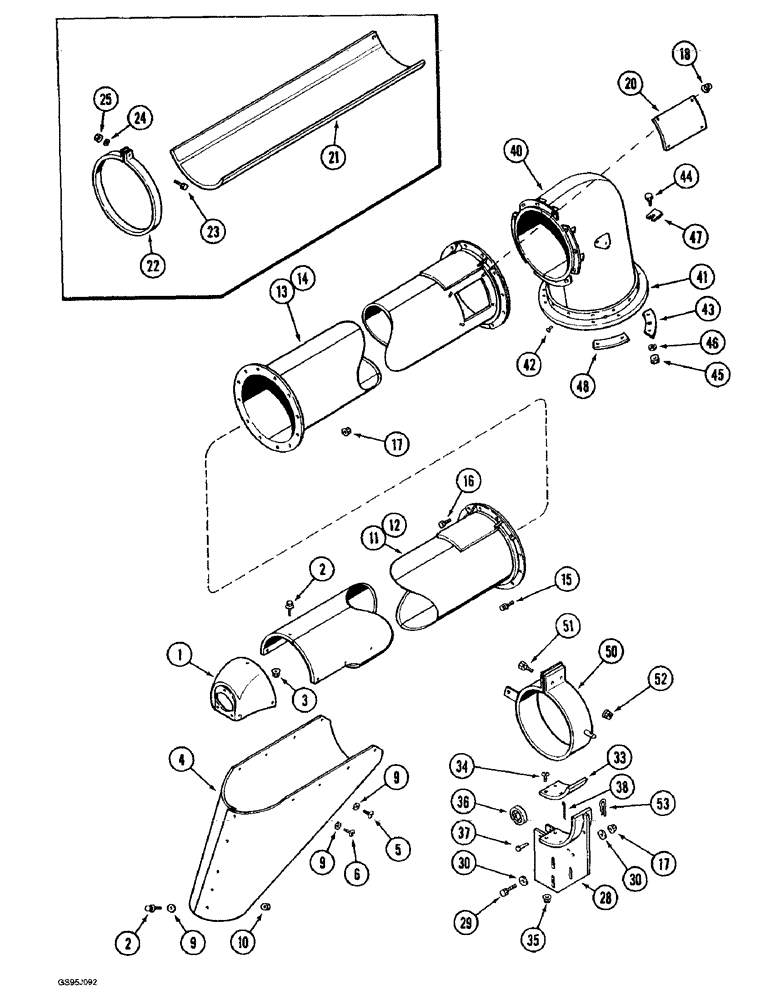

Запчасти Case IH 1682 (9-130) - GRAIN TANK UPPER UNLOADER TUBE (09) - CHASSIS ATTACHMENTS

1

182837C2

CAP

- tube, rear (Replaces cap 182837C1)

1шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

4

113488A1

SPOUT, DISCHARGE

SPOUT - down, unloader tube, 18 holes (Replaces spout 1321150C1)

1шт.

5

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

6

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

- slotted truss head, 5/16 NC x 1-1/4 inch

4шт.

9

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

16шт.

10

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

11

1317783C4

TUBE,2084 mm Length

- unloader, rear 172 inch (4,369 mm) (Replaces tube 1317783C3)

1шт.

12

1317899C3

TUBE,2998 mm Length

- unloader, rear 208 inch (5,283 mm) (Replaces tube 1317899C2)

1шт.

13

1317738C2

TUBE - unloader, plain, front not perforated for 172 inch (4,369 mm) 208 inch (5,283 mm) (Replaces tube 1317738C1)

1шт.

14

1317873C1

UNLOADING TUBE,2285 mm Length

TUBE - unloader, perforated, front perforated for 172 inch (4,369 mm) 208 inch (5,283 mm)

1шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

16

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

1шт.

17

231-5146

FLANGE NUT,3/8"-16

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

20

178158C1

PLATE

- inspection, tube

1шт.

21

178165C2

COVER

- support, perforated tube

1шт.

22

178166C1

CLAMP

- tube retaining, cover

4шт.

23

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

4шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

28

1327728C1

STIRRUP

SADDLE - support tube

1шт.

29

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

3шт.

30

495-81143

WASHER,13/32" x 1 1/2" x .120"

(Replaces washer 477589R1) 13/32" x 1 1/2" x .120"

6шт.

33

1321498C1

PAD

- saddle support bracket

1шт.

34

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

6шт.

35

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

36

1321499C1

WHEEL,63.5mm OD x 28.6mm W

WHEEL - unloader saddle

1шт.

37

439-5436

HEADED PIN,1/4" x 2 1/4", G5

PIN - head, 1/4 x 2-1/4 inch (Replaces pin 23813R1)

1шт.

38

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

40

193417C94

ELBOW

ASSEMBLY - unloader, tube (Replaces elbow assembly 193417C93), Includes: Ref. 41 & 42

1шт.

41

193418C3

FLANGE

- unloader elbow

1шт.

42

445-414

RIVET,But Hd, 1/4" x 7/8"

- truss head, 1/4 x 7/8 inch (Replaces rivet 451636)

12шт.

43

186657C2

SUPPORT

- front keeper

1шт.

44

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Replaces bolt 180126) Hex, 3/8"-16 x 1 1/2", G5

4шт.

45

425-106

NUT,3/8"-16, Cl 5

4шт.

46

492-11038

LOCK WASHER,3/8"

4шт.

47

151670C1

SHIM

SHIM - 0.036 inch, keeper bolt

4шт.

48

193472C2

PLATE

BAR - unloader tube keeper

1шт.

50

1317870C1

CLAMP

- retaining, tube

1шт.

51

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange, 5/16 NC x 1-1/4 inch

2шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

53

480523R1

HAIR PIN COTTER

retainer

1шт.
