(9-144) - CLEANING FAN

Запчасти Case IH 1682 (9-144) - CLEANING FAN (09) - CHASSIS ATTACHMENTS

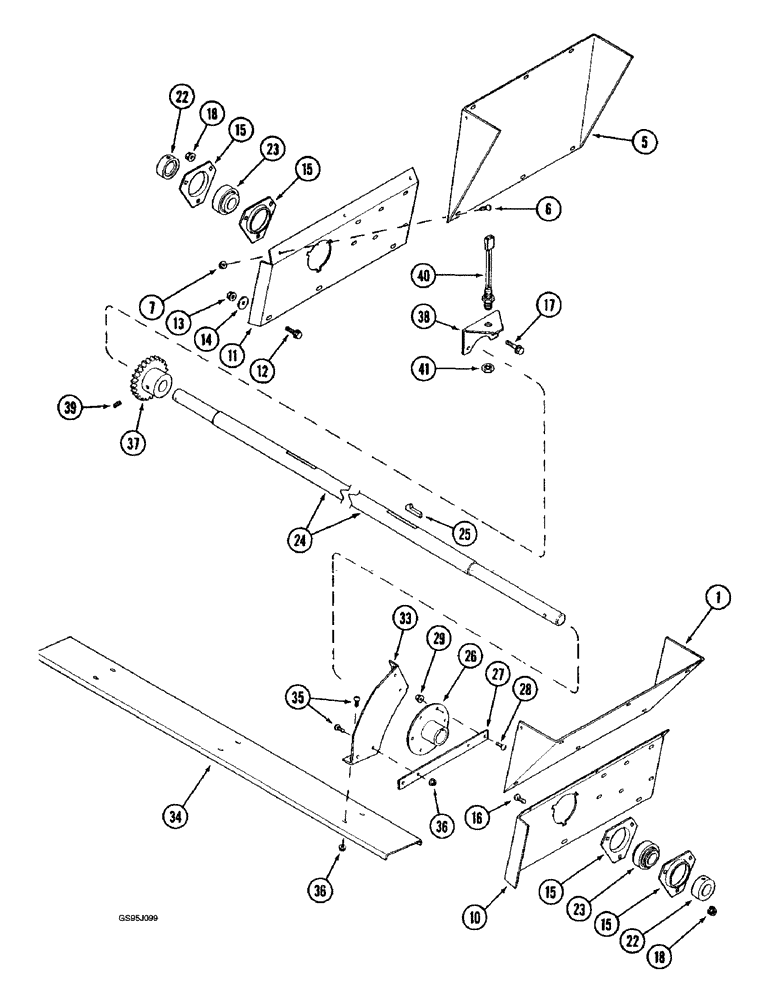

Схема запчастей Case IH 1682 - (9-144) - CLEANING FAN (09) - CHASSIS ATTACHMENTS
15
36
12
18
14
5
6
10
34
29
41
13
22
17
35
26
38
24
25
39
28
15
16
23
33
23
7
11
15
22
40
36
27
37
1
18
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

194398C3

SHIELD

- fan intake, right-hand (Replaces shield 194398C2)

1шт.

5

194397C3

SHIELD

- fan intake, left-hand (Replaces shield 194397C2)

1шт.

6

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

10

194396C1

SUPPORT

- bearing, fan shaft right-hand

1шт.

11

194395C1

SUPPORT

- bearing, fan shaft left-hand

1шт.

12

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

6шт.

13

231-5146

FLANGE NUT,3/8"-16

6шт.

14

614452R1

WASHER

- flat, 13/32 x 1-1/4 x 3/32 inch

6шт.

15

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing

4шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

17

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

(Replaces bolt 187620C1) Hex Flg, 3/8"-16 x 1 1/2", Serr

2шт.

18

231-5146

FLANGE NUT,3/8"-16

6шт.

22

455104R11

COLLAR

- locking, bearing

2шт.

23

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- fan

2шт.

24

1309015C2

SHAFT

- cleaning fan (Replaces shaft 1309015C1)

1шт.

25

Q1497

KEY,Gib, 3/8" Sq x 2"

- square gib, 3/8 x 2 inch

3шт.

26

185480C1

HUB ASSY.

HUB - fan, spider

3шт.

27

185483C1

BAR

- fan

18шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

18шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

18шт.

33

185484C1

SUPPORT

- blade, fan

6шт.

34

182927C1

BLADE

- cleaning fan

6шт.

35

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

72шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

72шт.

37

1979818C1

PINION

SPROCKET - speed, fan (Replaces sprocket 198526C1)

1шт.

38

1301240C2

SUPPORT

- fan speed tachometer, sensor

1шт.

39

483-13812

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW - headless cup point, 3/8 NC x 3/4 inch (Replaces screw 431662)

1шт.

40

92123C1

CONVERTER

PICKUP - reluctance

1шт.

41

131-404

LOCK NUT,PAL, 3/4"-16

NUT - hex, self-locking, 3/4 inch NF (Replaces nut 107827)

2шт.
